EVGA 700B Bronze 700W 20+4-pin ATX Power Supply w/SATA
PCIe & Large 140mm Teflon Nano-Steel Bearing Fan

EVGA 700B Bronze 700W 20+4-pin ATX Power Supply w/SATA, PCIe & Large 120mm Sleeve Bearing Cooling Fan (Black)

Call for pricing

EVGA 700B Bronze 700W 20+4-pin ATX Power Supply w/SATA, PCIe & Large 120mm Sleeve Bearing Cooling Fan (Black)

Description

EVGA 700B Bronze 700W 20+4-pin ATX Power Supply w/SATA, PCIe & Large 120mm Sleeve Bearing Cooling Fan (Black)
Condition
Factory Refurbished



 Unit Dimensions Are 10.75x4x8 inches
27.3×10.2×20.3 cm
The Warranty Period Is 90 Days  Each Unit Weighs 5.00 lbs / 2.27 kg
Packaging Factory Box  Each Master Box Has 12 Units
Product Number 100-B1-0700-RX-FB-R Master Box Dims Are 24x18x20 inches
61.0×45.7×50.8 cm
Tech Support By Dealer  Each Master Box Weighs 62.45 lbs / 28.33 kg
Support Contact — Each Pallet Has 216 Units
Regulatory Approval FCC, CE, TUV, A-Tick, WEEE  Each Pallet Weighs 1130 lbs / 512.57 kg
Country of Origin China

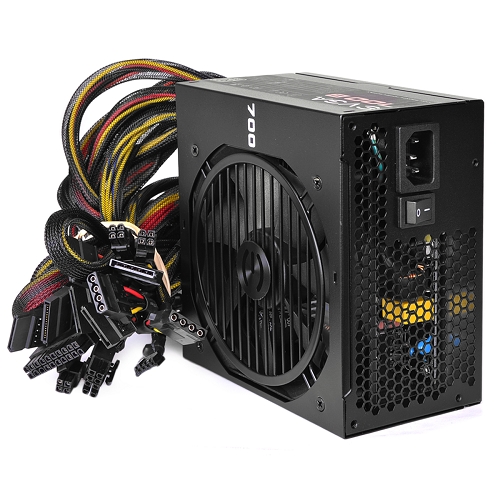

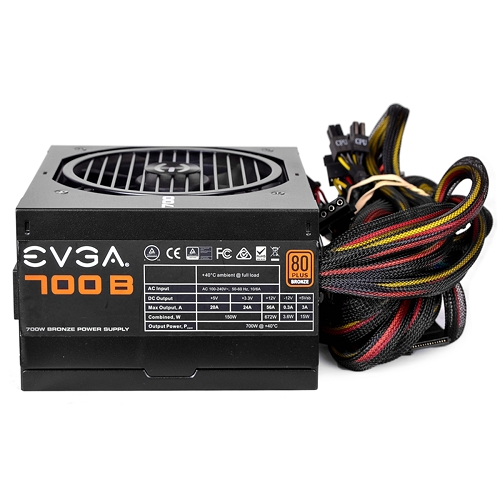

EVGA 700B Bronze Power Supply


  Features/Specifications:


  • EVGA 700B Bronze Power Supply

  • General Features:
  • Color: Black
  • 700-watt total power output
  • Large 120 mm Sleeve Bearing Fan
  • 80 Plus Bronze standard, with 85% efficiency or higher under typical loads
  • Single +12V High AMP rail design
  • OVP (Over Voltage Protection)
  • UVP (Under Voltage Protection)
  • OCP (Over Current Protection)
  • OPP (Over Power Protection)
  • SCP (Short Circuit Protection)
  • OTP (Over Temperature Protection)
  • Mesh covered cables
  • 100,000 hours MTFB
  • Lead-free components (RoHS compliant)

  • Cable Connectors:
  • One (1) 21.6-inch 20+4-pin ATX power connector
  • One (1) 23.6-inch 8-pin (4+4) EPS (CPU) 12V power connector
  • Two (2) 21.6-inch 8-pin (6+2) PCI Express power connectors
  • Nine (9) 17.7-inch SATA connectors
  • Four (4) 17.7-inch large Molex 4-pin power connectors
  • One (1) 4.72-inch small floppy drive connector

  • AC Input:
  • 100-240V, 50/60Hz, 10/6A

  • DC Output:
  • +3.3V, 24A
  • +5V, 20A
  • +12V, 56A
  • -12V, 0.3A
  • +5Vsb, 3A

  • Combined Output:
  • +3.3V, +5V: 150W
  • +12V: 672W
  • +5Vsb: 15W
  • -12V: 3.6W

  • Total Power:
  • 700W @40°C

  • Unit Dimensions:
  • 3.4 x 5.8 x 5.5-inches (H x W x D, approximate)
  Package Includes:


  • EVGA 700B Bronze Power Supply
  • Power cord
  • Screw pack
  Additional Information:


  • Notes:
  • Model: 700B
  • P/N: 100-B1-0700-RX
  • UPC: 8 4336 804139 7

  • Product Requirements:
  • ATX case
  • Available power outlet
  • Compatible motherboard

Additional information

Weight 2,27 kg
Dimensions 27,3 × 10,2 × 20,3 cm
Product Condition

Part Number
