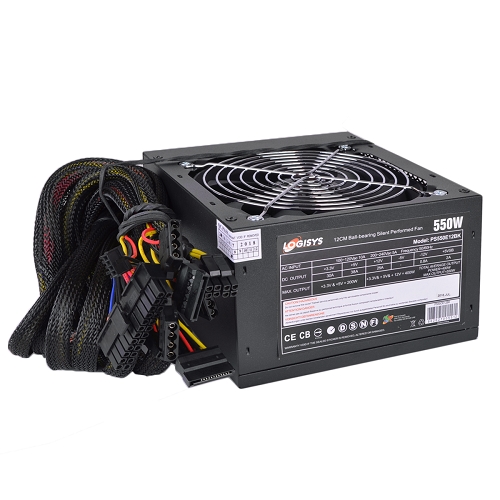

The PS550E12BK features 550-watts of output power and a large 120 mm ball bearing fan to keep it nice and cool. If you’ve got a window computer case you’ll love the sleek black color!

Keep the power flowing to your Serial ATA devices such as hard drives or optical drives with the three SATA connectors. Other features include over voltage protection, over power protection, short circuit protection and low noise and ripple!

This power supply is switchable between 115V and 230V. Simply connect the  PS550E12BK to your 20-pin or 24-pin ATX power connector on your motherboard and you’ve got the power you need to take charge!

Order today!

• Logisys 550W 20+4-pin ATX Power Supply
• General Features:
• Color: Black
• Maximum output power: 550-watts
• Over voltage protection
• Over power protection
• Short circuit protection
• Low noise and ripple
• Built-in 120 mm ball bearing fan (4.72-inches)
• Black sleeved wires
• Over Voltage protection
• Over power protection
• Short circuit protection
• 100% Hi-pot & Function (Chroma) tested
• 100% & Burn-in under high ambient temperature (50°C)
• Low noise and ripple
• Energy star efficiency
• Window 7 compatible
• Power Specifications:
• 115V, 230V switchable power supply
• Input:
• 100-120Vac 10A, 200-240Vac 5A 50/60Hz
• Output:
• +3.3V, 30A
• +5V, 38A
• +12V, 25A
• -5V
• -12V, 0.8A
• +5VSB, 2A
• Power Connectors:
• One (1) 12-inch 20+4-pin ATX power connector
• One (1) 4+4-pin 12V power connector
• One (1) 6-pin PCI Express connector
• Three (3) 4-pin large Molex connectors
• Three (3) SATA connectors
• One (1) small floppy drive power connector
• Unit Dimensions:
• 3.4 x 5.5 x 5.8-inches (H x W x D, approximate)
• Regulatory Approvals:
• CE
• BSMI
• C-Tick
• Fimko
• Semko
• Nemko
• WEEE

• Logisys 550W 20+4-pin ATX Power Supply
• Power cord

• Notes:
• Model: PS550E12BK
• UPC: 8 62627 00551 2
• Product Requirements:
• ATX case
• ATX motherboard
• Available power outlet
