Logisys Deepcool ALPHA 6 Socket 775 Aluminum Heat Sink & 3.62" Fan w/3-Pin Connector for Intel up to 84W

Logisys Deepcool ALPHA 6 Socket 775 Aluminum Heat Sink & 3.62″ Fan w/3-Pin Connector for Intel up to 84W

7,80 $

Logisys Deepcool ALPHA 6 Socket 775 Aluminum Heat Sink & 3.62″ Fan w/3-Pin Connector for Intel up to 84W

Out of stock

Description

Logisys Deepcool ALPHA 6 Socket 775 Aluminum Heat Sink & 3.62″ Fan w/3-Pin Connector for Intel up to 84W
Condition New  Unit Dimensions Are 4x4x3.75 inches
10.2×10.2×9.5 cm
The Warranty Period Is 1 Year  Each Unit Weighs 0.70 lbs / 0.32 kg
Packaging Retail Box  Each Master Box Has 50 Units
Product Number IC106 Master Box Dims Are 20x9x17.5 inches
50.8×22.9×44.5 cm
Tech Support By Dealer  Each Master Box Weighs 46 lbs / 20.87 kg
Support Contact — Each Pallet Has 1500 Units
Regulatory Approval FCC, CE, WEEE, RoHS  Each Pallet Weighs 1100 lbs / 498.96 kg
Country of Origin China

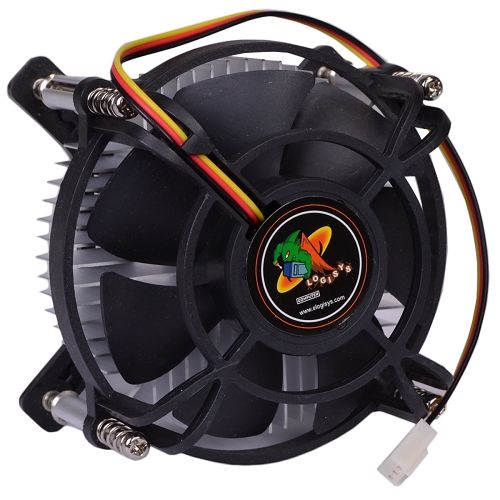

This Logisys Deepcool ALPHA 6 heat sink and fan provides optimal cooling for your hard working Intel Socket 775 CPU!

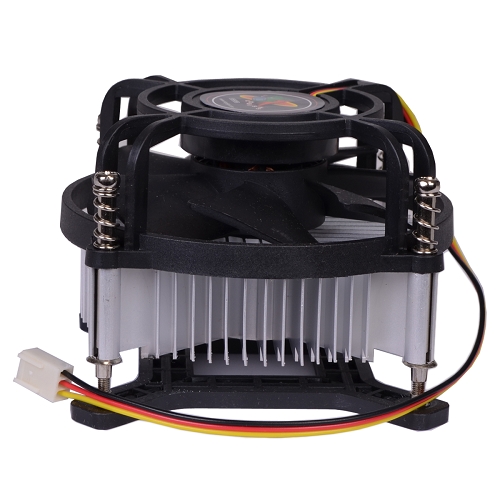

The IC106 features a radial-type aluminum heat sink and a 3.62-inch (92 mm) Hydro Bearing fan with 2200 RPM rotational speed and a 40.9 CFM maximum air flow! The IC106 is designed for Intel Core 2 Quad, Core 2 Duo, Pentium Dual-Core, Celeron Dual-Core, Celeron D and Celeron Socket 775 CPUs up to 84-watts!

Simply remove the old heat sink, place the Logisys Deepcool ALPHA 6 heat sink and fan on top of the CPU and lock it in place!

  Features/Specifications:


  • Deepcool ALPHA 6 Heat Sink and Fan

  • General Features:
  • Radial-type aluminum heat sink
  • 3.62-inch (92 x 92 x 32 mm) Hydro Bearing upside-down fan
  • Cost effective solution approved by Intel
  • Supports Intel Socket 84W LGA775 CPUs
  • 7-inch 3-pin power connector
  • Lead-free

  • Specifications:
  • Fan Speed: 2200 ±10% RPM
  • Maximum Air Flow: 40.9 CFM
  • Rated Voltage: 12 VDC
  • Started Voltage: 7 VDC
  • Operating Voltage: 10.8 ~ 13.2 VDC
  • Power Input: 2.4 W
  • Rated Current: 0.20 ±10% A
  • Noise: 25 dBA

  • Supported Processors:
  • Intel Core 2 Quad
  • Intel Core 2 Duo
  • Intel Pentium Dual-Core
  • Intel Celeron Dual-Core
  • Intel Celeron D
  • Intel Celeron
  • Socket 775

  • Overall Dimensions:
  • 3 x 3.74 x 3.74-inches (H x W x D, approximate)

  • Regulatory Approvals:
  • FCC
  • CE
  • WEEE
  • RoHS
  Package Includes:


  • Deepcool ALPHA 6 Heat Sink and Fan
  Additional Information:


  • Notes:
  • P/N: IC106
  • Model: ALPHA 6
  • EAN 6 933412 70329
  • Product labels may vary!

  • Product Requirements:
  • Supported CPU up to 84W
  • Available 3-pin power connector
  Informational Links:

  Product Page


Additional information

Weight 0,32 kg
Dimensions 10,2 × 10,2 × 9,5 cm
