Monoprice 10058 5.25" to 4x2.5" SAS/SATA 6Gb/s Hot-Swap Aluminum HDD Cage w/Key Lock
Pan & Tilt Control & 2-Way Audio (White)

Monoprice 10058 5.25″ to 4×2.5″ SAS/SATA 6Gb/s Hot-Swap Aluminum HDD Cage w/Key Lock

31,20 $

Monoprice 10058 5.25″ to 4×2.5″ SAS/SATA 6Gb/s Hot-Swap Aluminum HDD Cage w/Key Lock

Out of stock

Description

Monoprice 10058 5.25″ to 4×2.5″ SAS/SATA 6Gb/s Hot-Swap Aluminum HDD Cage w/Key Lock
Condition New  Unit Dimensions Are 9.75×6.75×2.75 inches
24.8×17.1×7.0 cm
The Warranty Period Is 90 Days  Each Unit Weighs 2.05 lbs / 0.93 kg
Packaging Plain Box  Each Master Box Has 12 Units
Product Number 10058-PB Master Box Dims Are 20.5×14.75×10.75 inches
52.1×37.5×27.3 cm
Tech Support By Dealer  Each Master Box Weighs 26.65 lbs / 12.09 kg
Support Contact — Each Pallet Has 288 Units
Regulatory Approval FCC, CE, WEEE  Each Pallet Weighs 640 lbs / 290.30 kg
Country of Origin China

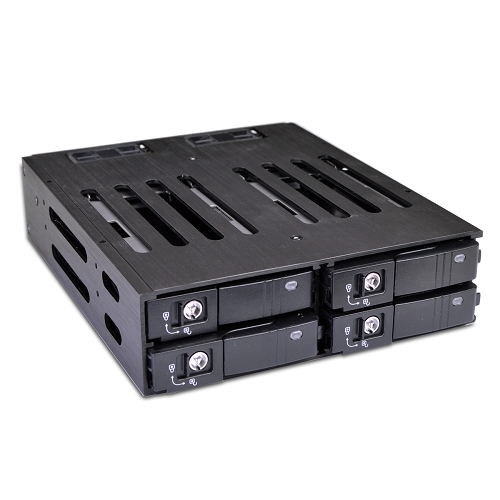

5.25″ to 4 x 2.5″ SAS and SATA 6Gb/s Hot-Swap Cage

Upgrade your PC’s hard drive cage to include hot swapping, support for SAS and SATA drives, and security using this Monoprice Hot Swap Cage!

This hard drive cage is intended to be installed into a standard PC case. It uses a single 5.25″ bay and provides space for four 2.5″ drives. It uses an SAS backplane, which provides full support for SAS I/II and SATA I/II/III drives. Each bay is hot swappable, which means you can change out drives without turning off your PC.

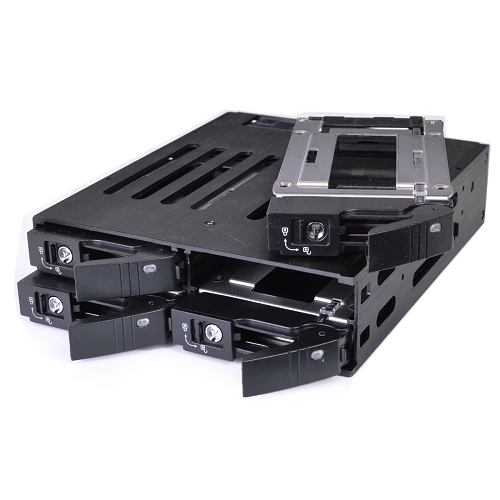

The cage is made of heavy-duty brushed aluminum, which provides superior drive heat dissipation, while keeping weight to a minimum. Each of the four bays has an individual drive tray, which accommodates 2.5″ drives up to 15mm thick. Each bay has a lock, so drives can be individually locked into place, which allows different users to bring their own data drives, while keeping the main system drives locked.

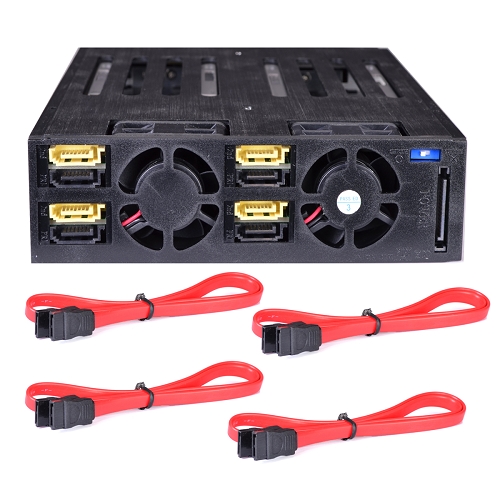

The enclosure has two 40mm fans for active cooling. Each bay has two associated data connectors on the back. The primary connectors are intended for basic use and are compatible with both SAS and SATA hard drives. The secondary connectors are compatible with SAS drives only. Both connectors can be used simultaneously when using a dual channel SAS controller for improved data throughput.

The cage uses standard SATA data and power cables (four data, one power). It comes with four SATA 6.0 Gbps (SATA III) cables, screws to secure the cage in a computer case and to secure each drive in its individual enclosure, and a key to lock the drive access doors.

  Features/Specifications:


  • Monoprice 10058 5.25″ to 4×2.5″ SAS/SATA 6Gb/s Hot-Swap HDD Cage

  • General Features:
  • Color: Black
  • Converts a single 5.25″ drive bay into four 2.5″ drive bays
  • Supports 2.5″ drives up to 15mm thick
  • Each bay supports a hard drive up to 1 Terabyte capacity (4 TB maximum total)
  • Aluminum frame for light weight and superior heat dissipation
  • Supports SAS I, SAS II, SATA I, SATA II, and SATA III drives
  • Provides up to 6.0 Gbps data transfer rate
  • Each bay is individually lockable
  • Plug and Play, Hot Swappable
  • Supports RAID (separate RAID controller required)
  • Supports Dual Channel SAS
  • Combination drive activity/power LED
  • Built-in 2 x 40mm (1.57″) cooling fans
  • Standard 15-pin power and 7-pin data connectors
  • Lead-free components (RoHS compliant)

  • Unit Dimensions:
  • 1.7 x 5.8 x 6.8-inches (H x W x D)
  • Weight: 1.8 lbs.
  Package Includes:


  • Monoprice 10058 5.25″ to 4×2.5″ SAS/SATA 6Gb/s Hot-Swap HDD Cage
  • Four (4) SATA cables
  • Two (2) Keys
  • Screw pack
  • ManuL
  Additional Information:


  • Notes:
  • P/N: 10058
  • UPC: 8 46813 00001 7

  • Product Requirements:
  • Available 5.25-inch drive bay
  • 2.5-inch SATA/SAS hard drives

Additional information

Weight 0,93 kg
Dimensions 24,8 × 17,1 × 7,0 cm
