Optimized Power for VMware View
Teradici’s Tera2321 is the most advanced processor for VMware-based virtualization. Experience all of your applications with blazing-fast response time.

True Personal PC Experience
The SD-Z245 supports 2D and 3D graphic-intensive applications and a rich multimedia experience at full frame rates over Gigabit Ethernet. This is the no-compromise solution for demanding users.

Dual Display Productivity
A PCoIP-based Zero Client doesn’t have to mean a compromise on performance and productivity. With its DVI-I digital or analog outputs, the SD-Z245 provides for dual display productivity when connected to secondary 1080p displays.

Simplified and Secure Management
The Teradici PCoIP Management Console provides for centralized deployment and management. With web-based access, administrators will be able to configure, update, manage, and even remotely control the power state for all of their PCoIP-based zero clients throughout the network.

Low Total Cost of Ownership
All of the benefits of a virtual desktop deployment can be realized with ViewSonic’s SD-Z245 Zero Client. From simple and quick deployment, enhanced security with no local HDD, increased reliability and higher productivity—the SD-Z245 is an efficient and low-cost choice for virtualizing desktops.

Save Cash and Save the Planet
With its ultra low 28W typical power consumption in Eco-mode, the SD-Z245 Zero Client monitor is not only environmentally friendly but also friendly on your electricity bill. The savings of this Zero Client monitor can add up to thousands of dollars for large install bases, compared to traditional PC’s and monitors. The savings can be as dramatic as $120,000 in five years.(Energy savings may vary based on actual usage and other factors.)

Flexibility for Your Peripherals
Versatile connectivity includes all common formats for connecting today’s components for business and entertainment. These include video out (DVI-I), 4-USB (V2.0) ports for your peripherals, Mic, Headphone, and RJ45 Ethernet for your 10/100/Gigabit network.

VESA-mountable design
The SD-Z245 features a 100 x 100mm VESA mountable design that allows for wall mounting or connection to standard VESA arms or mounts, depending on your specific needs.

Key Applications
Enterprise Class Zero Client Computing Performance (VMware)
Financial, Healthcare, Government, and Education customers
No local file saving for Hipaa and Sarbanes Oxley compliance

Features
• Teradici® Tera2321 CPU with 512MB System Memory
• Hardware accelerated PCoIP optimized for VMware View
• PCoIP Management Console provides web based global control
• Full connectivity supports video out (DVI-D) for dual monitor productivity, 4-USB (V2.0) ports, Mic, Headphone, and RJ45 Ethernet for 10/100/Gigabit
• Ultra-reliable design with no moving parts lasts twice as long
• True personal PC experience
• Simplified and secure management
• Low total cost of ownership
• Also works as a standard PC Monitor (VGA input – includes cable)

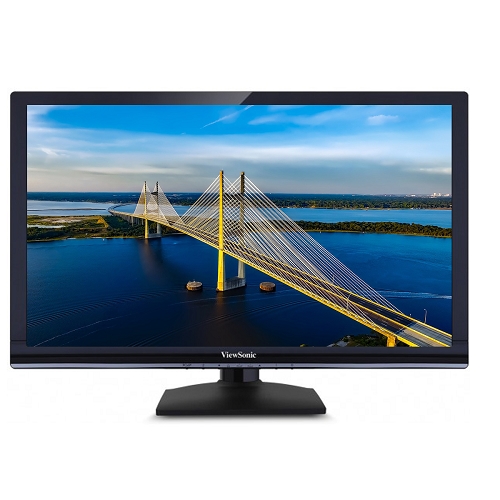

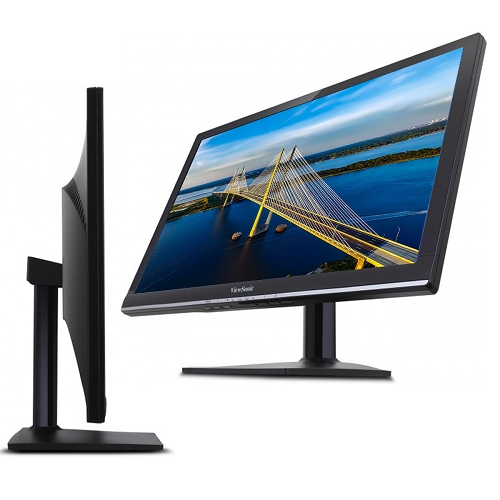

• 23.6″ ViewSonic SD-Z245 Zero Client 1080p Widescreen LED LCD Monitor


• General Features:
• Color: Black/Silver
• Zero Client Monitor
• 24″ (23.6″ viewable) Wide Color TFT Active Matrix LED
• Two (2) 2-watt Internal Speakers
• Teradici Tera 2321 CPU with 512MB System Memory
• Hardware accelerated PCoIP optimized for VMware View
• PCoIP Management Console provides web based global control
• Ultra-reliable design
• Also works as a standard PC Monitor (VGA input – includes cable)
• Specifications:
• CPU Processor Type: Teradici Tera2321
• Image Performance: 50Mpps (DVI out)
• System Memory: DDR3 512MB @ 1066MHz
• Software Protocols: VMware PCoIP
• Display Area: 20.5″ horizontal x 11.5″ vertical; 23.6″ diagonal
• Optimum Resolution: 1920×1080
• Brightness: 250 cd/m2 (typ.)
• Contrast Ratio: 1000:1 (typ.)
• Dynamic Contrast Ratio: 20,000,000:1
• Viewing Angles: 170º horizontal, 160º vertical
• Response Time: 5ms (typ)
• Backlight White-light: LED
• Backlight Life: 30,000 hours (min.)
• Panel Surface: Anti-glare, hard-coating (3H)
• Video Input: Analog RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
• Frequency: Fh: 24~82kHz, Fv: 50~75Hz
• VESA mount: 100m x 100mm
• Tilt: Forward 5° / Back 20°
• Controls:
• Basic: PCoIP, 2, Down, Up, 1, Power
• OSD: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

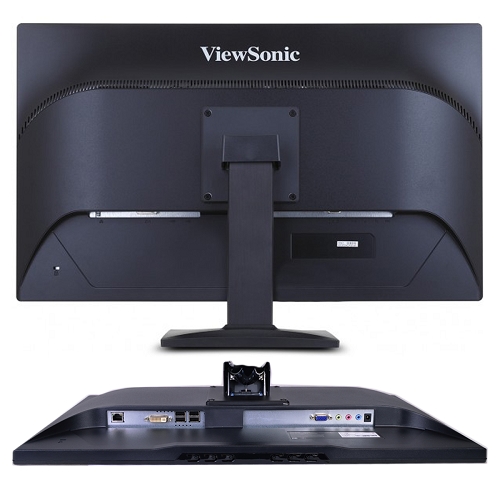

• Connectors:
• LAN: One (1) RJ-45 10/100/1000 Gigabit Ethernet
• Video In: One (1) 15-pin mini D-sub (VGA)
• Video Out: One (1) DVI-I
• USB: Four (4) USB 2.0
• Line In: One (1) 3.5 mm jack
• Microphone In: One (1) 3.5 mm jack
• Headphone: One (1) 3.5 mm jack
• Power: DC in
• Key Applications:
• Enterprise Class Zero Client Computing Performance (VMware)
• Financial, Healthcare, Government, and Education customers
• No local file saving for Hipaa and Sarbanes Oxley compliance
• Power Adapter Specifications:
• Input: 100 – 240V, 50/60Hz
• Output: 19Vdc, 3.42A
• Power Consumption: 28W
• Unit Dimensions:
• With stand: 15.5 x 22.3 x 7.5-inches (H x W x D, approximate)
• Without stand: 13.5 x 22.3 x 2-inches (H x W x D, approximate)

• 23.6″ ViewSonic SD-Z245 Zero Client 1080p Widescreen LED LCD Monitor
• Power adapter
• Power cord
• VGA cable
• Base/Stand

• Notes:
• P/N: SD-Z245
• Model: VS15612
• Product Requirements:
• • For use as a Zero Client monitor:
  • Zero Client Network with PCoIP support (optimized for VMware Horizon View)
  • USB Keyboard/Mouse
  • 10/100/Gigabit network and network cable (standard RJ45 Ethernet)
  • Available power outlet
  • DVI monitor and cable for dual-monitor productivity (optional)
  • Headphones (optional)
  • Microphone (optional)
  • For use as a standard PC monitor:
  • PC with VGA out
  • Available power outlet
