PUBLIC DISPLAY MODE
From channel selection to energy-saving features, Public Display Mode allows you to control the TV settings in your business area prevent misuse by customers, set volume limits, or restore factory defaults on any TV. You are in control of it all.

USB CLONING
The USB Cloning feature allows you to simply copy the TV settings onto all TVs using a USB stick, a process that is fully automated to save time without having to set each TV one by one.

WELCOME SCREEN
Having a warm greeting message with your business area name and its logo on the TV when they enter the space will let them feel more welcome and cared for.

MHL
MHL connects smart phones to the TV instantly, mirroring content in HD quality, just like connecting a PC through an HD cable. Moreover, it allows you to control the phone’s content on the TV with a remote control.

RS232C CONTROL
Via the TV’s RS-232C port, you can remotely control multiple TVs’ power and volume settings simultaneously.

Multi IR
Multi IR function eliminates the remote control signal interference between TVs in multiple dwelling rooms. This system will work using the same LG TV model.(Optional LG part 124-213-10 required)

IR out
IR Out enables customized set‐top boxes to receive IR signals via LG TV Signage. This added convenience requires only simple connections and allows easy management using a single remote control.

EXTERNAL SPEAKER OUT
Enhance the entertainment experience by adding an additional speaker, visitors to listen to and control the TV audio from anywhere in your business area, including restrooms (external speakers not included)

USB 2.0
You can play images and videos from and record TV programs to external storage devices. Immediate recording and reserved recording options are available.

At a Glance:
FOR EFFICIENT MANAGEMENT- PUBLIC DISPLAY MODE
FOR EFFICIENT MANAGEMENT- MHL (MOBILE HIGH-DEFINITION LINK)
FOR EFFICIENT MANAGEMENT- USB CLONING
FOR CONVENIENCE & ENTERTAINMENT- EXTERNAL SPEAKER OUT

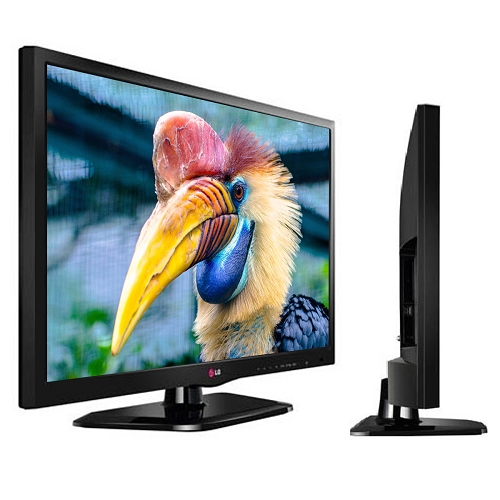

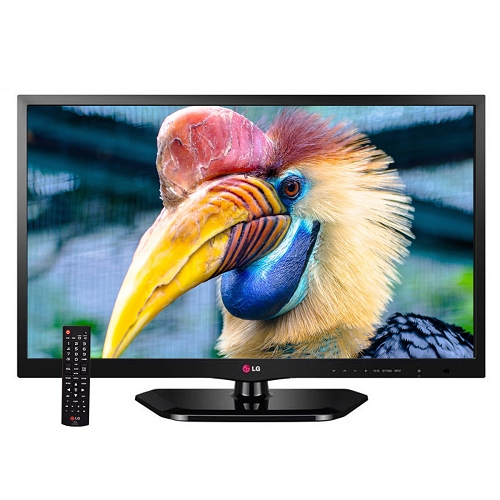

• 29″ LG 720p Widescreen Ultra-Slim Commercial Direct LED LCD Display
• General Features:
• Color: Black
• Response Time (G to G): 8.5ms
• Panel Size: 29” Class (28.5″)
• Panel Technology: Edge LED
• Native Resolution: 1366 x 768 (HD)
• Frame Rate: 60Hz
• Viewing Angle(HxV): 178°/178°
• Dynamic Contrast Ratio: 1,000,000:1
• Brightness cd/m2: 150 cd/m2
• Static (Panel) Contrast Ratio: 3,000:1
• VESA mount: 100 x 100mm
• Analog: NTSC
• Digital: ATSC/QAM/VSB
• XD Engine
• Real Cinema 24p (3:3 pull down)
• Aspect Ratio: 16:9/Just Scan/Set By Program/4:3/Zoom
• Special Features:
• HDMI-CEC
• Remote Diagnostics: USB 2.0
• Welcome Screen (Splash Image)
• Lock Mode
• Audio Codec: MP3, AC3, MPEG, AAC,HEAAC, CDDA, LPCM
• Smart Energy Saving
• Motion eye care (intelligent sensor)
• RF(1/2Tuner): MHL
• HTNG-CEC 1.3
• Hotel Mode/ PDM /Installer Menu
• Multi IR Code
• IR Out: RS232C
• Auto Off/Auto Sleep
• RJP Compatibility
• RJP Interface
• Kensington Lock
• External Speaker Out: Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GRD,L+,R+), 1W with 8Ω)
• USB Auto Play Back
• USB
• USB Cloning
• Moving Picture Playback (SD/HD/Plus HD): Divx HD
• Picture: JPEG
• Audio:
• Audio Output: 5W + 5W
• Invisible Speaker
• Clear Voice II
• Sound Mode: 6 Modes (Standard, News, Music, Cinema, Sport, Game)
• Speaker System: 2.0 ch
• Interface (Side):
• One (1) HDMI
• One (1) USB 2.0
• Interface (Rear):
• One (1) RF In
• One (1) AV In
• One (1) Digital Audio Out (Coaxial / Optical)
• One (1) HDMI/HDCP Input
• One (1) RGB In (D-sub 15pin) – PC
• One (1) PC Audio Input
• One (1) RS-232C (D-Sub 9pin)
• One (1) External Speaker Out
• One (1) Component in (Y,Pb,Pr) + Audio
• Power Adapter Specifications:
• Input: 100-240V ~ 50/60Hz, 1.4A
• Output: 19V—2.53A
• Unit Dimensions:
• 16.2 x 26.3 x 3.2-inches (H x W x D) -w/o stand
• Weight: 11.46 lbs – w/o stand
• 18.0 x 26.3 x 7.2-inches (H x W x D) -w/stand
• Weight: 12.3 lbs – w/stand

• 29″ LG 720p Widescreen Ultra-Slim Commercial Direct LED LCD Display
• Remote control with Two (2) “AAA” batteries
• Owner’s manual
• Power cord
• AC adapter

• Notes:
• Display models may vary (may be some slight variation on specifications)
• Picture is for representational purposes only
• Product Requirements:
• HDTV programming
• Antenna, satellite or cable receiver
• PC with VGA adapter and cable
• USB thumb drive with JPEG photos
• Blu-ray player, game console, camcorder, digital camera or stereo system with HDMI, component, composite, S-Video and optical jacks
• Available power outlet
