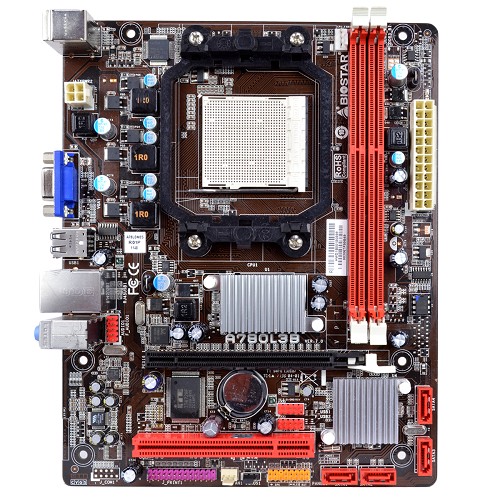

Biostar A780L3B AMD 760G Socket AM3 mATX Motherboard

• Biostar A780L3B AMD 760G Socket AM3 mATX Motherboard

• General Features:
• mATX form factor
• AMD 760G + SB710 chipset
• Socket AM3 architecture
• Supports HyperTransport Technology 3.2G
• Dual-channel DDR3 memory architecture
• Supports up to 16 GB DDR3 SDRAM (800/1066/1333/1600(OC) MHz)
• Integrated ATI Radeon HD3000 graphics w/Up to 512 MB shared memory
• Integrated VIA VT1708B 6-channel HD audio
• Integrated Realtek RTL8105T 10/100 Fast Ethernet
• Four (4) Serial ATA 3.0 Gb/s controllers w/RAID 0, 1, 10 support
• 24-pin ATX power connector
• 4-pin ATX12V power connector
• Supports Windows XP, Vista and 7
• Supports Solid capacitor
• Supports BIOS-Flasher
• Supports BIOS-Relife
• Lead-free components (RoHS compliant)


• Expansion Slots:
• One (1) PCI Express x16 slot
• One (1) PCI slot
• Two (2) 240-pin DDR3 DIMM slots

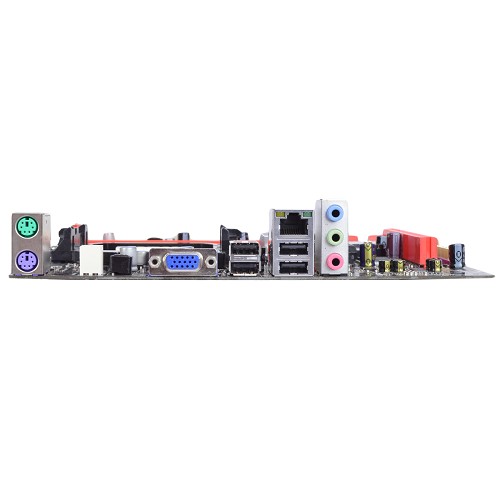

• Rear I/O Ports:
• Two (2) PS/2 ports
• One (1) 15-pin VGA port
• Four (4) USB 2.0 ports
• One (1) RJ-45 Ethernet jack
• Line-in, microphone and line-out jack

• Internal Headers:
• One (1) Printer header
• Two (2) USB 2.0 headers
• One (1) Front audio header
• One (1) Front panel header
• One (1) CPU fan header
• One (1) System fan header

• Supported Processors:
• AMD Phenom II X4 processor
• AMD Phenom II X3 processor
• AMD Phenom II X2 processor
• AMD Athlon II X4 processor
• AMD Athlon II X3 processor
• AMD Athlon II X2 processor
• AMD Sempron processors
• Max. TDP (Thermal Design Power): 95-watts
• Supports AMD Cool’n’Quiet Technology


• Regulatory Approvals:
• FCC
• CE
• WEEE

• Biostar A780L3B AMD 760G Socket AM3 mATX Motherboard only

• Notes:
• Model: A780L3B
• UPC: 8 02700 50398 6
• Cables, I/O shield and Driver discs are not included.

• Product Requirements:
• mATX or ATX case
• Supported RAM
• Rest of system
