Biostar N68S3+ NVIDIA MCP68S Socket AM3 mATX Motherboard

• Biostar N68S3+ NVIDIA MCP68S Socket AM3 mATX Motherboard
• General Features:
• NVIDIA MCP68S chipset
• mATX form factor
• Supports up to 8 GB DDR3 800/1066/1333 MHz (supported by CPU model) dual channel memory
• NVIDIA GeForce 7025 integrated video with up to maximum 512 MB shared memory (under OS by Turbo Cache)
• Realtek ALC662 6-channel HD audio
• Realtek RTL8201CL 10/100 Ethernet LAN
• One (1) IDE controller
• One (1) Floppy controller
• Four (4) SATA 3.0 Gb/s connectors with RAID 0, 1, 5, 10 support
• Solid capacitor
• BIOS Flasher
• BIOS Relife
• Supports Windows 7/Vista/XP
• Lead-free
• Expansion Slots:
• One (1) PCI Express x16 slot
• Two (2) PCI slots
• Two (2) 240-pin DIMM sockets

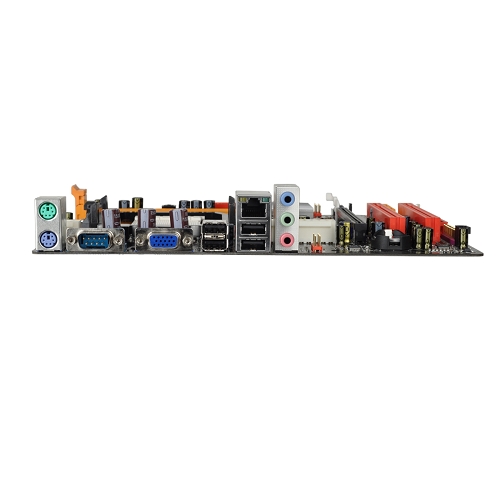

• Rear I/O Ports:
• Two (2) PS/2
• One (1) 9-pin serial
• One (1) 15-pin VGA
• Four (4) USB 2.0
• One (1) RJ-45 Ethernet
• One (1) Line-in audio
• One (1) Line-out audio
• One (1) Microphone in
• Internal I/O Headers:
• One (1) 24-pin ATX power connector
• Two (2) USB 2.0
• One (1) Printer
• One (1) Front audio
• One (1) Front panel
• One (1) S/PDIF-out
• One (1) CPU fan
• One (1) System fan
• Supported Processors:
• AMD Phenom II X4
• AMD Phenom II X3
• AMD Phenom II X2
• AMD Athlon II X4
• AMD Athlon II X3
• AMD Athlon II X2
• AMD Sempron
• Socket AM3
• Supports HyperTransport technology up to 2G
• Supports AMD Cool’n’Quiet technology
• Maximum CPU TDP (Thermal Design Power): 95-watt

• Biostar N68S3+ NVIDIA MCP68S Socket AM3 mATX Motherboard Only

• Notes:
• Model: N68S3+
• UPC: 8 02700 50356 6
• EAN: 4 712795 653342
• Cables, I/O shield and Driver discs are not included.
• Product Requirements:
• mATX/ATX case
• Power supply
• Supported CPU, RAM
• IDE and floppy cables
• The rest of the system
