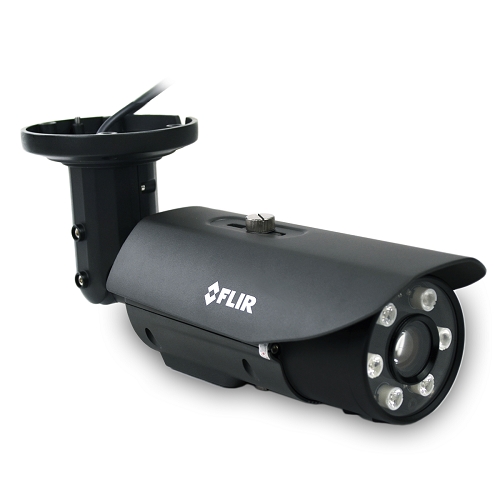

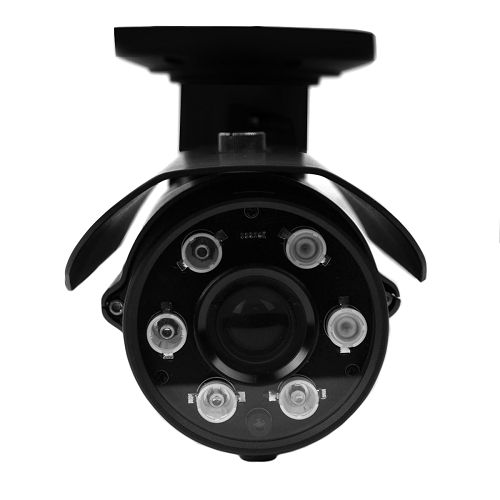

Flir Lorex 700+TVL DPB34TLX True Day/Night Weatherproof 6-50mm VF ArcticPro Smart IR Bullet Camera

Flir Lorex 700+TVL DPB34TLX True Day/Night Weatherproof 6-50mm VF ArcticPro Smart IR Bullet Camera

165,60 $

Flir Lorex 700+TVL DPB34TLX True Day/Night Weatherproof 6-50mm VF ArcticPro Smart IR Bullet Camera

Out of stock

Description

Flir Lorex 700+TVL DPB34TLX True Day/Night Weatherproof 6-50mm VF ArcticPro Smart IR Bullet Camera
Condition Reconditioned Unit Dimensions Are 13.75×8.5×4.75 inches
34.9×21.6×12.1 cm
The Warranty Period Is 90 Days Each Unit Weighs 4.75 lbs / 2.15 kg

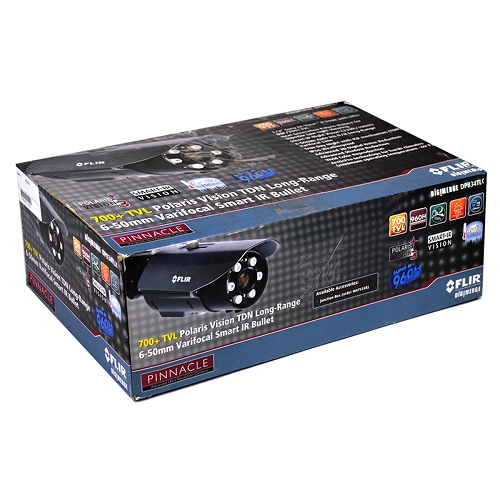

Packaging Retail Box Each Master Box Has 6 Units
Product Number DPB34TLX-RC Master Box Dims Are 24x18x20 inches
61.0×45.7×50.8 cm
Tech Support By Dealer Each Master Box Weighs 30.5 lbs / 13.83 kg
Support Contact — Each Pallet Has 48 Units
Regulatory Approval N/A Each Pallet Weighs 278 lbs / 126.10 kg
Country of Origin China



Flir Lorex 700+TVL DPB34TLX Day/Night Weatherproof 6-50mm VF ArcticPro IR Bullet Camera
Features/Specifications:

  • Flir Lorex 700+TVL DPB34TLX Day/Night VF ArcticPro IR Bullet Camera



  • General Features:
  • Color: Black/Gray
  • 1/3” Sony EX-View II 960H with Effio DSP/700+ TVL
  • Next Generation Polaris Vision3 for Superior Low Light Viewing
  • Smart-IR Night Vision (330ft/100m)
  • 6-50mm Auto Iris D/N Long-Range Varifocal Lens
  • True Day Night with ICR mechanism (TDN)
  • IP66 Weatherproof
  • Advanced 3D Digital Noise Reduction (3D-DNR)
  • Advanced Shadow Reduction
  • Vivid Color Reproduction
  • ArcticPro technology for harsh climates (minimum operating temperature -40°F)
  • Privacy Masking/Motion Detection
  • 12V DC/24V AC Operation (power adapter or Ethernet cable to powered Ethernet port required, not included)
  • Service Monitor Output (RCA)
  • Cable through bracket design

  • Easy install mounting pole



  • Specifications:
  • Power Source: DC 12V / AC 24V+10%
  • Power Consumption: 9.5 Watts
  • Minimum Power Requirement: 770mA
  • Image Sensor: 1/3” 960H SONY EXview HAD CCD II
  • Effective Pixels: 976 (H) x 494 (V)
  • Scanning System: 2:1 Interlace
  • Scanning Frequency: 15.734KHz (H) x 59.94Hz (V)
  • Sync System: Internal/Line Lock
  • Resolution: 700+ TVL
  • Minimum Illumination: 0.1lux F 1.2 @ 50 IRE
  • Video Output: 1.0 Vp-p (75 ohm, composite)
  • S/N Ratio: +50dB (AGC OFF)
  • 3D-DNR: On/Off (Adjustable Gain)
  • D-WDR: On (level selectable)/Off
  • BLC: On/Off
  • HLC: Auto/On/Off
  • Day & Night: Color/BW/Auto/EXT
  • Smart IR: IP66
  • Motion Detection: On/Off (4 Programmable zone)
  • Sens-up (DSS): Auto/Off (Selectable limit 2x ~ 512x)
  • Privacy Masking: On/Off (15 Programmable zone)
  • White Balance: ATW/Push/User 1/User 2/Anti CR/Push Lock
  • Auto Gain Control: High/Low luminance control
  • Electronic Shutter Speed: Auto/Manual
  • Sharpness On/Off (level adjustable)
  • Flip: Horizontal/Vertical/Both
  • Effect: D-Zoom (pan/tilt)
  • Setup Method: OSD setup menu
  • OSD Language: English/Chinese
  • Power Input: 2-Pin terminal block
  • Video Output: BNC Connector
  • Lens Mount: Fixed mount
  • Lens: 6-50mm F1.4-2.2 AI day/night varifocal lens
  • Operating Temperature: -40º ~ 122ºF/-40º ~ 50ºC
  • Operating Humidity: 0 ~ 90% (non-condensing)

  • Ingress Rating: IP66



  • Unit Dimensions:
  • 14.8 x 4 x 4.3-inches (H x W x D, approximate)
Package Includes:
  • Flir Lorex 700+TVL DPB34TLX Day/Night VF ArcticPro IR Bullet Camera
  • Mounting Screw Kit
  • Mounting Plate
  • Allen Key
  • RCA-to-BNC Test Cable
Additional Information:
  • Notes:
  • Model: DPB34TLX
  • Product Requirements:
  • BNC/RCA cable
  • Monitor/TV
  • Power adapter
  • Powered Ethernet port and cable (optional)
  • MNTV2XB Junction Box (optional)

Additional information

Weight 2,15 kg
Dimensions 34,9 × 21,6 × 12,1 cm
