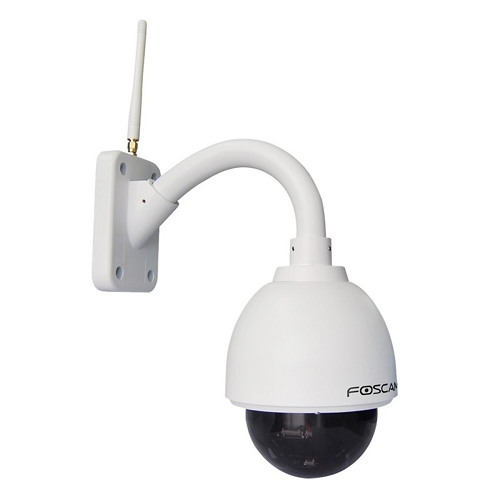

Foscam FI9828W HD Wireless PTZ Outdoor Day/Night Dome IP Camera

• Foscam FI9828W HD Wireless PTZ Outdoor Day/Night Dome IP Camera

• General Features:
• Standard H.264 video compression algorithm
• 1.3 Mega-pixel
• Supports IE/Firefox/Google/Safari browser or any other standard browsers
• Supports WEP,WPA and WPA2 encryption
• Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
• IR night vision (Range:20m)
• Supports image snapshot
• Supports dual-stream
• Supports IR-Cut and the filter change automatically
• Embedded FOSCAM DDNS (dynamic domain name service) service
• Supports remote viewing and record from anywhere anytime
• Multi-level users management with password protection
• Motion detection alert via email or upload image to FTP
• Supporting third party domain name
• Providing phone APPs for Android and iPhone users
• Supports multiple network protocols: HTTP/HTTPS/RTSP/TCP/IP/UDP/FTP/DHCP/DDNS/UPNP
• Providing central management software to manage or monitor multi-cameras

• Specifications:
• Image Sensor: High Definition Color CMOS Sensor
  • Display Resolution: 1280 x 960 (1.3 Megapixel)
  • Min. Illumination: 0 Lux (With IR Illuminator)
• Lens
  • Lens Type: Glass Lens
  • Focal length: f:3.7~14.8mm
  • Aperture: F1.6
  • Angle of View: 70° maximum
• Video
  • Image Compression: H.264
  • Image Frame Rate: 30fps maximum, downward adjustable
  • Resolution: (1.3Megapixel)1280 x 960, 720P(1280 x 720), VGA(640 x 480), VGA(640 x 360), QVGA(320 x 240),QVGA(320 x 180)
  • Stream: dual stream
  • Image adjustment: The hue, brightness, contrast, saturation, sharpness are adjustable
  • Flip image: flip and mirror
  • Infrared mode: Automatic or manual
  • Pan/Tilt Angle: Horizontal:355° & Vertical: 90°
  • Night visibility: 21pcs IR-LEDs, night vision range up to 20 metres
• Audio
  • Input/Output: External 3.5mm standard interface for two-way audio
  • Audio Compression: PCM/G.726
• Network
  • Ethernet: One 10/100Mbps RJ45 port
  • Wireless Standard: IEEE802.11b/g/n
  • Data Rate: IEEE802.11b: 11Mbps(Max.), IEEE802.11g: 54Mbps(Max.), IEEE802.11n: 150Mbps(Max.)
  • Wireless Security: WEP, WPA, WPA2
  • Network Protocol: IP、TCP、UDP、HTTP、HTTPS、SMTP、FTP、DHCP、DDNS、UPnP、RTSP
• Environment
  • Operating Temperature: -20° ~ 55°C (-4°F ~ 131°F)
  • Operating Humidity: 20% ~ 85% non-condensing
  • Storage Temperature: -20°C ~ 60° (-4°F ~ 140°F)
  • Storage Humidity: 0% ~ 90% non-condensing
• Motion Detection: Alarm via E-Mail, upload alarm snapshot to FTP
• Privacy Zone: Set privacy zone manually
• User Accounts: Three levels user role
• Firewall Supports: IP Filtering
• Reset: Reset button is available

• Power Specifitions:
• Power supply: DC 12V/2.0A
• Power consumption: 10Watts (Max.)

• Unit Dimensions:
• 10.3 x 6 x 11.2-inches (H x W x D, approximate)

• Foscam FI9828W HD Wireless PTZ Outdoor Day/Night Dome IP Camera
• Wireless antenna
• Power adapter

• Notes:
• Model: FI9828W

• Product Requirements:
• Available power outlet
• Wireless network
• PC with 2.0GHZ CPU with 256MB of RAM or above
• Microsoft Windows 200, XP, Vista, 7 (32/64 bit) 8 (32/64 bit)
• Mac with Mac OS
• IE 6.0, IE7.0, IE8.0,IE9.0, Firefox2.0,Firefox3.0, Google Chrome, Safari or other standard browsers
• iOS or Android device (optional)
