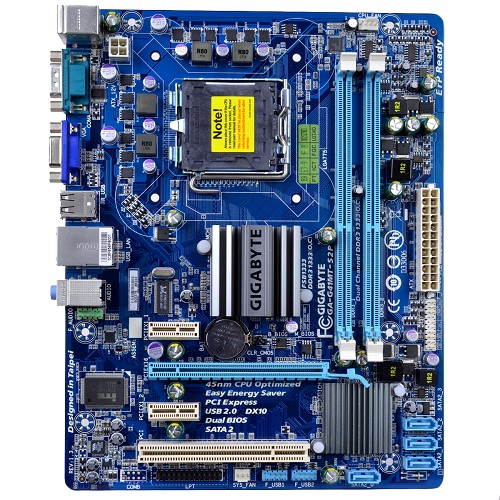

GIGABYTE GA-G41MT-S2P Intel G41 Socket 775 mATX Motherboard

• GIGABYTE GA-G41MT-S2P mATX Motherboard

• General Features:
• Next Gen. Quality Components and 4 Phase CPU Power design
• Japanese Solid Capacitor for CPU VRM
• Supports 45nm Intel Core 2 multi-core processors with FSB 1333 MHz
• Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
• 3X USB power delivery for greater compatibility and extra power for USB devices
• Hi-def 108dB Signal-to-noise ratio Blu-ray DVD audio playback
• Revolution energy saving design with Easy Energy Saver technology
• Integrated Intel Graphics Media Accelerator X4500 (DirectX 10)
• Features high speed Gigabit Ethernet.
• DualBIOS protection with 3TB+ HDD boot up capability
• Compatible with Window 7 to deliver the best operation experience
• Meet European Union ErP(Energy-related Products) requirement
• Support for @BIOS
• Support for Q-Flash
• Support for Xpress BIOS Rescue
• Support for Download Center
• Support for Xpress Install
• Support for Xpress Recovery2
• Support for EasyTune
• Support for Easy Energy Saver
• Core/Celeron Dual-Core/Celeron 400 Series CPU to enable support for Easy Energy Saver
• Support for Smart Recovery
• Support for ON/OFF Charge
• Support for Q-Shares
• System voltage detection
• CPU/System temperature detection
• CPU/System fan speed detection
• CPU overheating warning
• CPU/System fan fail warning
• CPU/System fan speed control

• Specifications:
• Supports Intel Core 2 Extreme processor/Intel Core 2 Quad processor/Intel Core 2 Duo processor/Intel Pentium processor/Intel Celeron processor in the LGA775 package Intel G41 + ICH7 Chipset
• Two (2) 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memorysize displayed will be less than 4 GB.
• Dual channel memory architecture
• Support for DDR3 1333 (O.C.)/1066/800 MHz memory modules
• VIA VT2021 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• One (1) Atheros AR8151 chip (10/100/1000 Mbit)
• Four (4) SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
• Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Two (2) 8 Mbit flash
• Use of licensed AWARD BIOS
• Support for DualBIOS
• PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

• Expansion Slots
• 1 x PCI Express x16 slot, running at x16
• 2 x PCI Express x1 slot
• 1 x PCI slots

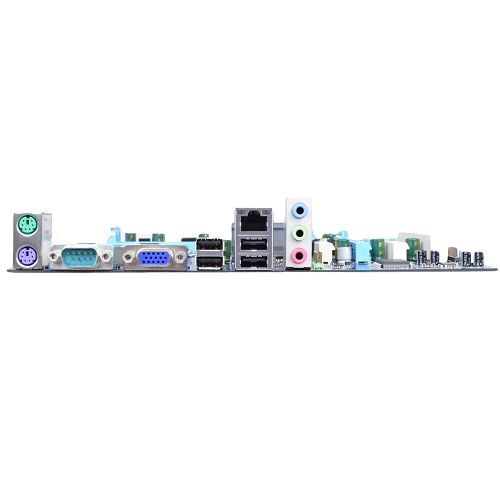

• Back Panel Connectors
• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x serial port
• 1 x D-Sub port
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks (Line In/Line Out/Microphone)

• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 4 x SATA 3Gb/s connectors
• 1 x CPU fan header
• 1 x system fan header
• 1 x front panel header
• 1 x front panel audio header
• 2 x USB 2.0/1.1 headers
• 1 x parallel port
• 1 x clearing CMOS jumper

• Unit Dimensions:
• Micro ATX Form Factor; 24.4cm x 19.4cm

• GIGABYTE GA-G41MT-S2P Intel G41 Socket 775 Micro-ATX Motherboard

• Notes:
• Model: GA-G41MT-S2P
• UPC: 8 18313 01207 4
• EAN: 4 719331 852177
• Cables, I/O shield and Driver discs are not included.

• Product Requirements:
• Micro-ATX Case
• Micro-ATX power supply
• Low Profile PCI Express video card
• Supported processor and RAM
• Rest of the system
