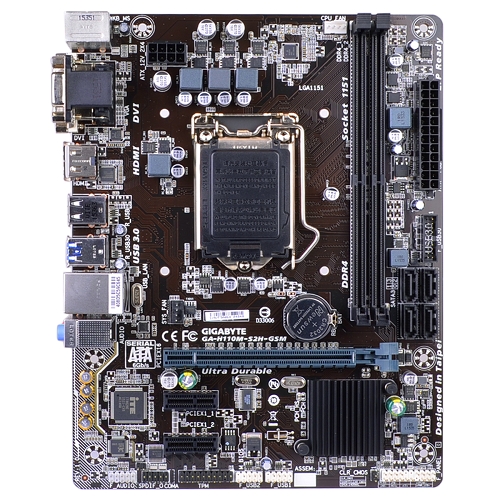

Gigabyte GA-H110M Intel H110 Socket 1151 mATX Motherboard

• Gigabyte GA-H110M Intel H110 Socket 1151 mATX Motherboard

• General Features:
• Supports 6th Generation Intel Core Processor
• Dual Channel DDR4, 2 DIMMs
• 8-channel HD Audio with high quality audio capacitors
• Audio Noise Guard with LED Trace Path Lighting
• HDMI 1.4, DVI-D, D-sub ports for multiple display
• Realtek GbE LAN with cFosSpeed Internet Accelerator Software
• All new GIGABYTE APP Center, simple and easy use
• Support Intel Small Business Basics
• iTE I/O Controller Chip
• Supports Windows 7/8.1/10

• Special Features:
• Support for Q-Flash
• Support for Smart Switch
• Support for Xpress Install
• Support for APP Center:
  • 3D OSD
  • @BIOS
  • AutoGreen
  • Cloud Station
  • EasyTune
  • Fast Boot
  • Smart TimeLock
  • Smart Keyboard
  • Smart Backup
  • System Information Viewer
  • USB Blocker

• Specifications:
• Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
• L3 cache varies with CPU

• Chipset:
• Intel H110 Express Chipset

• Memory:
• Two (2) DDR4 DIMM sockets supporting up to 32 GB of system memory
• Dual channel memory architecture
• Support for DDR4 2133 MHz memory modules
• Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

• Onboard Graphics:
• Integrated Graphics Processor – Intel HD Graphics support:
• One (1) D-Sub port, supporting a maximum resolution of 1920×1200 @60 Hz
• One (1) DVI-D port, supporting a maximum resolution of 1920×1200 @60 Hz
• One (1) HDMI port, supporting a maximum resolution of 4096×2160 @24 Hz
• Support for up to 2 displays at the same time
• Maximum shared memory of 1024 MB

• Audio:
• Realtek ALC887 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

• LAN:
• Realtek GbE LAN chip (10/100/1000 Mbit)

• Expansion Slots:
• One (1) PCI Express x16 slot, running at x16 (PCIEX16)
• Two (2) PCI Express x1 slots

• Storage Interface:
• Chipset: Four (4) SATA 6Gb/s connectors

• USB:
• Chipset:
  • Four (4) USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • Eight (8) USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• H/W Monitoring:
• System voltage detection
• CPU/System temperature detection
• CPU/System fan speed detection
• CPU/System overheating warning
• CPU/System fan fail warning
• CPU/System fan speed control

• BIOS:
• One (1) 64 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Internal I/O Connectors:
• One (1) 24-pin ATX main power connector
• One (1) 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• One (1) CPU fan header
• One (1) system fan header
• One (1) front panel header
• One (1) front panel audio header
• One (1) S/PDIF Out header
• One (1) USB 3.0/2.0 header
• Two (2) USB 2.0/1.1 headers
• One (1) Trusted Platform Module (TPM) header
• One (1) serial port header
• One (1) Clear CMOS jumper

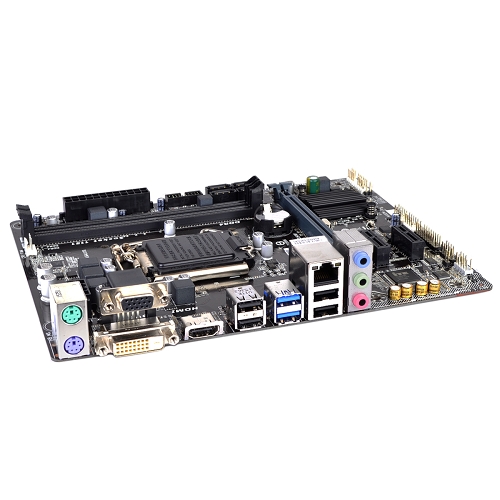

• Back Panel Connectors:
• One (1) PS/2 mouse port
• One (1) PS/2 Keyboard port
• One (1) D-Sub port
• One (1) DVI-D port
• One (1) HDMI port
• Two (2) USB 3.0/2.0 ports
• Four (4) USB 2.0/1.1 ports
• One (1) RJ-45 port
• Three (3) audio jacks (Line In, Line Out, Mic In)

• Unit Dimensions:
• Form factor: mATX
• 7 x 9.3-inches

• Gigabyte GA-H110M Intel H110 Socket 1151 mATX Motherboard

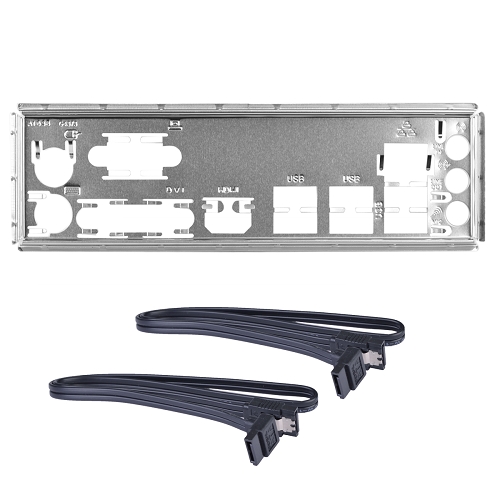

• One (1) SATA cable
• Driver CD
• I/O shield

• Notes:
• Model: GA-H110M-S2H-GSM
• EAN: 4 719331 838393

• Product Requirements:
• Micro-ATX Case
• Micro-ATX power supply
• Supported processor and RAM
• Rest of the system
