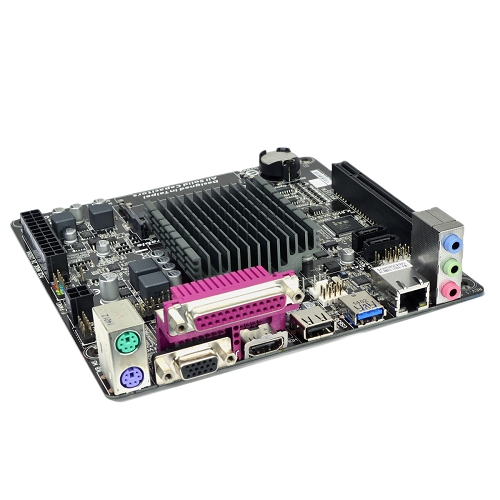

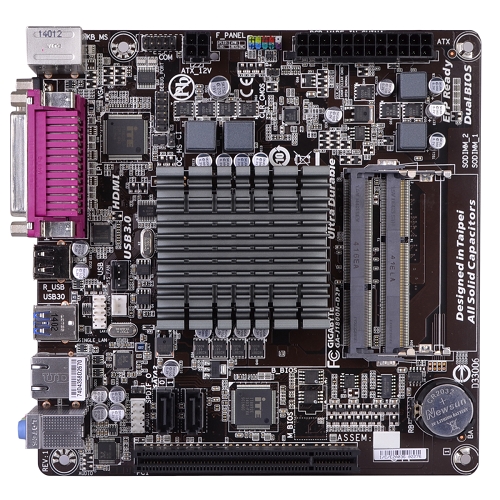

GIGABYTE GA-J1800N-D2P Mini-ITX Motherboard w/Celeron J1800 Dual-Core 2.41GHz CPU

Motherboard ONLY – No I/O shield, no cables, no manual, no drivers, etc.

• GIGABYTE GA-J1800N-D2P Mini-ITX Motherboard w/Celeron J1800 2.41GHz CPU

• General Features:
• Built-in Intel Celeron J1800 2.41 GHz dual-core processor and heat sink
• GIGABYTE Ultra Durable 4 Plus Technology
• All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
• LAN with high ESD Protection
• GIGABYTE UEFI DualBIOS
• HDMI, D-SUB ports on rear panel
• USB 3.0 port with GIGABYTE 3x USB power
• GIGABYTE On/Off Charge for USB devices
• PCI interface for wide-range expansion card selections
• Lead-free (Pb-Free)

• CPU:
• Built in with an Intel Dual-Core Celeron J1800 SoC (2.41 GHz)
• 1 MB Cache

• Memory:
• 2 x DDR3/-L SODIMM sockets supporting up to 8 GB of system memory
• Dual channel memory architecture
• Support for DDR3/-L 1333 MHz memory modules
• Support for non-ECC memory modules

• Onboard Graphics:
• Integrated I the SoC:
• 1 x D-Sub port, supporting a maximum resolution of 2560×1600
• 1 x HDMI port, supporting a maximum resolution of 1920×1080

• Audio:
• Realtek ALC887 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

• Expansion Slots:
• One (1) PCI slot

• Storage Interface:
• Integrated in the SoC: 2 x SATA 3Gb/s connectors

• LAN:
• Realtek GbE LAN chip (10/100/1000 Mbit)

• USB:
• Integrated in the SoC:
• 1 x USB 3.0/2.0 port on the back panel
• 3 x USB 2.0/1.1 ports (1 port on the back panel, 2 ports available through the internal USB header)

• Internal Connectors:
• One (1) 24-pin ATX main power connector
• One (1) 4-pin ATX 12V power connector
• Two (2) SATA 3Gb/s connectors
• One (1) CPU fan header
• One (1) system fan header
• One (1) front panel header
• One (1) front panel audio header
• One (1) S/PDIF Out header
• One (1) USB 2.0/1.1 header
• One (1) serial port header
• One (1) debug card header
• One (1) chassis intrusion header
• One (1) Clear CMOS jumper

• Back Panel Connectors:
• One (1) PS/2 keyboard port
• One (1) PS/2 mouse port
• One (1) D-Sub port
• One (1) HDMI port
• One (1) parallel port
• One (1) USB 3.0/2.0 port
• One (1) USB 2.0/1.1 port
• One (1) RJ-45 port
• Three (3) audio jacks (Line In, Line Out, Mic In)

• I/O Controller:
• iTE I/O Controller Chip

• H/W Monitoring:
• System voltage detection
• CPU/System temperature detection
• CPU/System fan speed detection
• CPU/System fan speed control

• BIOS:
• 2 x 64 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features:
• Support for Xpress Install
• Support for @BIOS
• Support for APP Center
• Support for ON/OFF Charge

• Operating System:
• Support for Windows 10/8.1/8/7

• Form Factor:
• Mini-ITX Form Factor; 17.0cm x 17.0cm

• GIGABYTE GA-J1800N-D2P Mini-ITX Motherboard w/Built-in Celeron CPU & heat sink only

• Notes:
• Model: GA-J1800N-D2P
• Motherboard ONLY – No I/O shield, no cables, no manual, no drivers, etc.

• Product Requirements:
• Mini-ITX case
• Power supply
• Supported RAM
• Rest of the system (I/O Shield, Cables, Drivers, Etc.)
