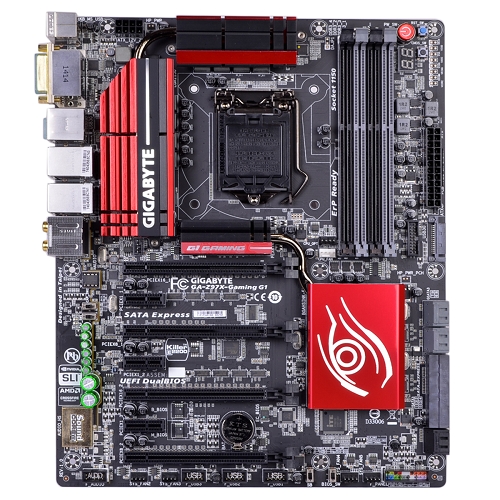

Gigabyte GA-Z97X-GAMING G1 Intel Z97 Socket 1150 ATX Motherboard

• Gigabyte GA-Z97X-GAMING G1 Intel Z97 Socket 1150 ATX Motherboard

• General Features:
• Supports 4th and 5th Generation Intel Core processors
• Onboard Creative Sound Core3D quad-core audio processor
• AMP-UP Audio technology with exclusive Upgradable OP-AMP
• Audio Noise Guard with LED path lighting
• Dual DAC-UP USB ports
• Gold plated display and audio ports
• High end Nichicon audio capacitors
• Killer E2200 and Intel gaming networking
• Extreme gaming 4-way graphics support
• SATA Express support for 10 Gb/s data transfer
• Long lifespan Durable Black Solid caps
• APP Center including EasyTune and Cloud Station utilities
• GIGABYTE UEFI DualBIOS
• Operating System: Support for Windows 10/8.1/8/7

• Special Features:
• Support for Q-Flash
• Support for Smart Switch
• Support for Xpress Install
• Support for APP Center:
  • @BIOS
  • EasyTune
  • EZ Setup
  • Fast Boot
  • Game Controller
  • ON/OFF Charge
  • Smart TimeLock
  • Smart Recovery 2
  • System Information Viewer
  • USB Blocker

• Specifications:
• CPU:
  • Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel
  • L3 cache varies with CPU

• Chipset:
• Intel Z97 Express Chipset

• Memory:
• Four (4) DDR3 DIMM sockets supporting up to 32 GB of system memory
• Dual channel memory architecture
• Support for 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
• Support for non-ECC memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• Onboard Graphics:
• Integrated Graphics Processor – Intel HD Graphics support:
• One (1) DVI-I port, supporting a maximum resolution of 1920×1200 @60Hz
• One (1) HDMI port, supporting a maximum resolution of 4096×2160 @24Hz or 2560×1600 @60Hz
• One (1) DisplayPort, supporting a maximum resolution of 4096×2160 @24Hz or 3840×2160 @60Hz
• Support for up to 3 displays at the same time
• Maximum shared memory of 512MB

• Audio:
• Creative Sound Core 3D chip
• TI Burr Brown OPA2134 operational amplifier
• Support for Sound Blaster Recon3Di
• High Definition Audio
• 2/5.1-channel
• Support for S/PDIF Out

• LAN:
• One (1) Qualcomm Atheros Killer E2201 chip (10/100/1000 Mbit) (LAN1)
• One (1) Intel GbE LAN phy (10/100/1000 Mbit) (LAN2)

• Expansion Slots:
• Two (2) PCI Express x16 slots, running at x16 (PCIEX16_1~2)
• Two (2) PCI Express x16 slots, running at x8 (PCIEX8_1~2)
• Three (3) PCI Express x1 slots

• Multi-Graphics Technology:
• Support for 4-Way/3-Way/2-Way AMD CrossFire/NVIDIA SLI technology

• Storage Interface:
• Chipset:
  • One (1) SATA Express connector
  • Six (6) SATA 6Gb/s connectors (SATA3 0~5)
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
• Two (2) Marvell 88SE9172 chips:
  • Four (4) SATA 6Gb/s connectors (GSATA3 6~9)
  • Support for RAID 0 and RAID 1

• USB:
• Chipset:
  • Four (4) USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • Eight (8) USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
• Chipset + Renesas uPD720210 USB 3.0 Hub:
  • Four (4) USB 3.0/2.0 ports on the back panel

• I/O Controller:
• iTE I/O Controller Chip

• H/W Monitoring:
• System voltage detection
• CPU/System/Chipset temperature detection
• CPU/CPU OPT/System fan speed detection
• CPU/System overheating warning
• CPU/CPU OPT/System fan fail warning
• CPU/CPU OPT/System fan speed control

• BIOS:
• Two (2) 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Internal I/O Connectors:
• One (1) 24-pin ATX main power connector
• One (1) 8-pin ATX 12V power connector
• One (1) PCIe power connector
• One (1) SATA Express connector
• Ten (10) SATA 6Gb/s connectors
• One (1) CPU fan header
• One (1) water cooling fan header (CPU_OPT)
• Five (5) system fan headers
• One (1) front panel header
• One (1) front panel audio header
• One (1) USB 3.0/2.0 header
• Three (3) USB 2.0/1.1 headers
• One (1) Clear CMOS jumper
• One (1) power button
• One (1) reset button
• One (1) Clear CMOS button
• Two (2) audio gain control switches
• Eight (8) onboard voltage measurement points
• Two (2) BIOS switches

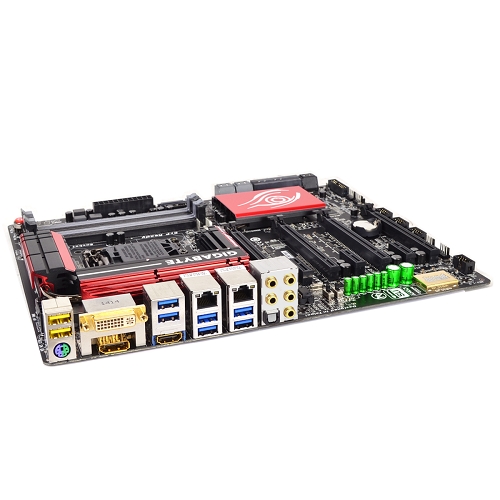

• Back Panel Connectors:
• One (1) PS/2 keyboard/mouse port
• One (1) optical S/PDIF Out connector
• One (1) DVI-I port
• One (1) DisplayPort
• One (1) HDMI port
• Two (2) USB 2.0/1.1 ports
• Six (6) USB 3.0/2.0 ports
• Two (2) RJ-45 ports
• Five (5) audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)

• Unit Dimensions:
• ATX Form Factor; 30.5cm x 24.4cm

• Gigabyte GA-Z97X-GAMING G1 Intel Z97 Socket 1150 ATX Motherboard
• User manual
• Driver CD

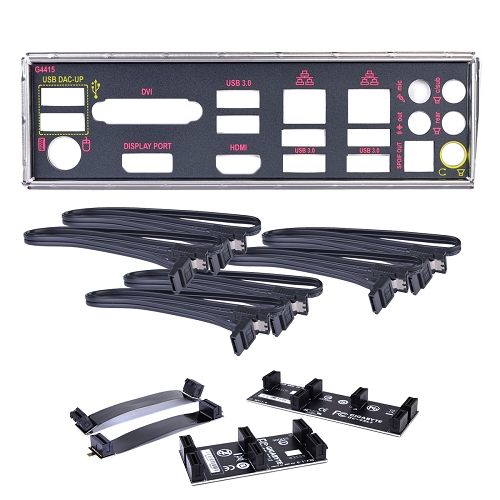

• I/O shield
• Six (6) SATA cables
• One (1) 2-way Crossfire bridge
• One (1) 2-way SLI bridge
• One (1) 3-way SLI bridge
• One (1) 4-way SLI bridge

• Notes:
• Model: GA-Z97X-GAMING G1
• UPC: 8 18313 02073 4

• Product Requirements:
• ATX case
• Power supply
• Supported processor
• Supported RAM
• Cable, I/O Shield and Driver discs
• The rest of the system
