Jovision 4-Channel Network Video Recorder Kit w/4 IR 720p IP Cameras
Remote Access
USB & HDMI - Just Add Hard Drive

Jovision 4-Channel Network Video Recorder Kit w/4 IR 720p IP Cameras, Remote Access, USB & HDMI – Just Add Hard Drive

141,60 $

Jovision 4-Channel Network Video Recorder Kit w/4 IR 720p IP Cameras, Remote Access, USB & HDMI – Just Add Hard Drive

Out of stock

Description

Jovision 4-Channel Network Video Recorder Kit w/4 IR 720p IP Cameras, Remote Access, USB & HDMI – Just Add Hard Drive
Condition New Unit Dimensions Are 17x10x14 inches
43.2×25.4×35.6 cm
The Warranty Period Is 1 Year Each Unit Weighs 15.35 lbs / 6.96 kg

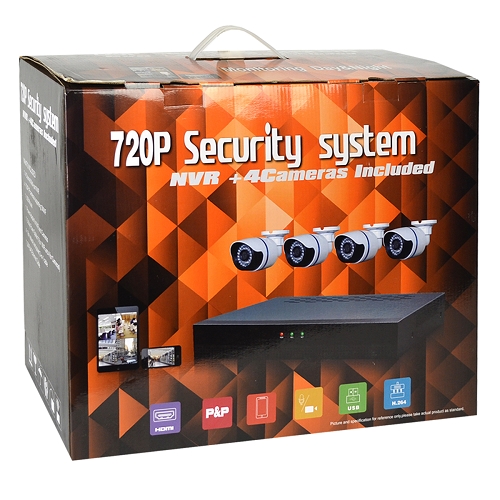

Packaging Retail Box Each Master Box Has 2 Units
Product Number 4CHNVRKITS Master Box Dims Are 20x18x15 inches
50.8×45.7×38.1 cm
Tech Support By Dealer Each Master Box Weighs 15.35 lbs / 6.96 kg
Support Contact — Each Pallet Has 16 Units
Regulatory Approval FCC, CE Each Pallet Weighs 295 lbs / 133.81 kg
Country of Origin China



Jovision 4-Channel Network Video Recorder Kit w/4 IR 720p IP Cameras

Features/Specifications:
  • Jovision 4-Channel Network Video Recorder Kit
  • General Features:
  • 4-Channel Network Video Recorder (NVR)
  • Four (4) 720p Infrared IP Cameras included
  • Just Add Hard Drive – supports 2 SATA hard drives up to 4 Terabyte capacity
  • Plug and Play

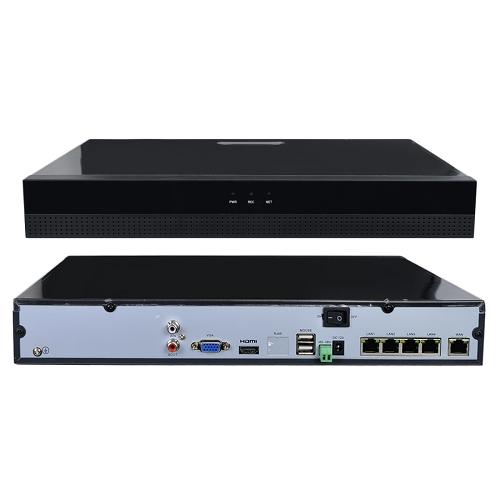

  • NVR Features:
  • O/S: Embedded Linux
  • Video Input: 4 Ethernet ports
  • Video Output: 1 ch VGA and 1 ch HDMI
  • Video Compression: H.264
  • Preview Resolution: 1920 x 1080 / 1280 x 960 / 1280 x 720
  • Frame Rate: 5/10/15/20/25/30 fps
  • Playback Frame Rate: 25 fps
  • Onvif: Supported
  • Network Interface: RJ45, 10/100/1000 self adaptation
  • Network View: Supports live view with Mobile phones, IE ,CMS
  • Mobile Phone: Compatible to iPhone, iPad and Android
  • Front LEDs:
  • Power
  • Rec
  • Net
  • Ports:
  • Four (4) LAN ports
  • One (1) WAN port
  • One (1) RCA Audio in
  • One (1) RCA Audio out
  • One (1) VGA
  • One (1) HDMI
  • Two (2) USB 2.0
  • RS485-485+ connector
  • DC 12V power
  • IP Camera Features:
  • Image Sensor: 1/4-inch CMOS
  • Resolution: 1280 x 720
  • Frame Rate: 25fps
  • Onvif: Supported
  • Lens: 3.6mm
  • LEDs: 30 IR LEDs
  • IR Distance: 10m – 30m (33 – 98-feet)
  • Integrated Power/Ethernet cable connectors (approximate  length)
  • Power Adapter Specifications:
  • Input: 100 – 240V, 50/60Hz, 1.5A
  • Output: 12V, 5000mA
  • Dimensions:
  • DVR: 2.1 x 14.75 x 10.6-inches (H x W x D)
  • Camera: 2.5 x 2.4 x 7-inches (H x W x D)

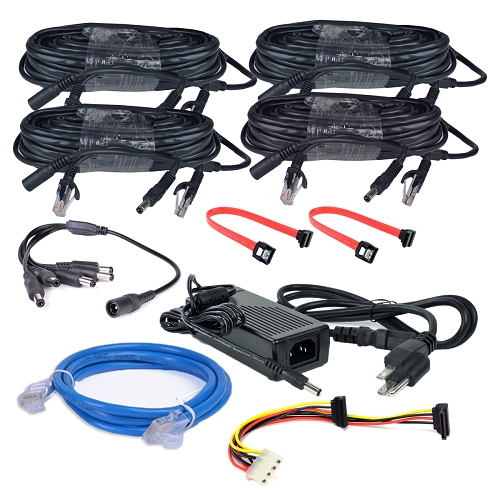

Package Includes:
  • Jovision 4-Channel Network Video Recorder
  • Four (4) 720p IP Cameras
  • Quick Install Guide
  • CloudSEE Software CD
  • USB mouse
  • 2m /6.56ft. RJ45 Ethernet cable
  • Power adapter
  • Power cord
  • 5-way power splitter (1 for NVR & 4 for cameras)
  • Four (4) 60-feet Network & Power 2-in-1 cables
  • Two (2) SATA cables
  • Dual SATA to 4-pin power cable
  • Screw pack
Additional Information:
  • Notes:
  • P/N: 4CHNVRKITS
  • Product Requirements:
  • SATA Hard Drive
  • Available power outlet
  • Network connection
