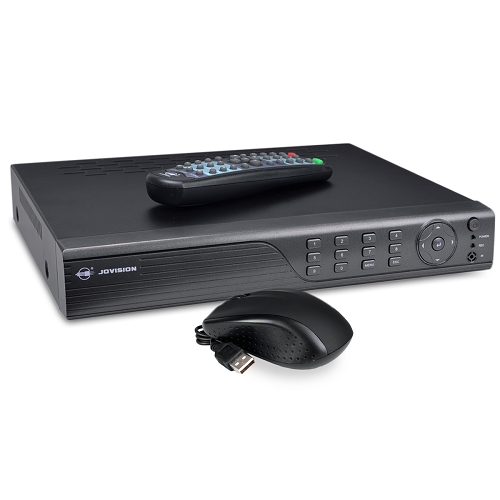

Jovision JVS-D6016-S3 16-Channel D1 Analog Digital Video Recorder

• Jovision JVS-D6016-S3 16-Channel D1 Analog Digital Video Recorder


• General Features:
• Color: Black
• 16-Channel Analog DVR
• All D1 Resolution
• H.264 Video compression technology.
• Supports audio compression to achieve real-time video monitoring function
• MP4 record file format
• CloudSEE technology, One-key remote, Network plug & play for remote access
• Just add hard drive and cameras
• Supports 2 SATA hard drives up to 4 Terabyte capacity
• Screen Layout: 1/2/4/8/9/16 Screens
• Alarm notification: Buzzer/Alarm device/PTZ call, Send alarm to client-end/E-mail alarm
• Screen Layout:  1/2/4/8/9/16 Screens
• Digital Zoom support
• Voice Intercom support
• Night Vision Mode support
• Privacy Mask support
• Video Loss Alarm support
• Alarm Snapshot support
• Playback Layout: 4 Screens
• Multi-Language support
• Operation device: Mouse/Remote Control/Front Panel
• Remote Control: Startup/Shutdown
• Alarm In:  4 Groups ,32CH,External Alarm Box Input
• Alarm Output: 4 Groups, 32CH, External Alarm Box Output
• Video & Audio:
• Video Input: 16CH BNC
• Video Output: HDMI(1920*1080/1440*900/1280×1024/1024×768)
  • VGA (1920*1080/1440*900/1280×1024/1024×768）
  • CVBS（PAL：720×576/NTSC：720×480）
• Audio Input: 2CH RCA
• Audio Output: 1CH RCA
• Video Compression: H.264
• Video Preview Resolution: 16CH D1
• Recording Resolution: D1/CIF
• Video BitRate: 200kbps～1200kbps
• Audio Compression: G.711
• Storage:
• HDD Type: SATA Interface
• HDD Number: 2pcs (up to 4TB/pcs）
• File Format: log：*.txt/picture：*.bmp/record：*.mp4
• Log Number: 2000
• USB （backup）: Support U disk/Mobile HDD  FAT32 format
• Record:
• Record Type: Manual, Scheduled, Alarm, Motion Detection
• Record Mode: Cyclic Covering/Stop Recording
• Playback Control:  Play, Pause, Stop, Rewind, Fast play, Slow play, Digital zoom
• Search Mode: All/Channel/Record Type/Date(Alone or Combined query)
• Network:
• Ethernet: 10M/100M Adaptive
• 3G wireless network card support
• Dual Stream Support
• Max Remote viewing channel: 24CH
• Protocol: TCP/IP, DHCP, PPPoE, UDP
• WIFI Module:  Support MT7601
• AutoDial support
• Client-end: Cloudsee/WebCC/Android/IOS
• Smartphone:
• Mobile OS: Android/IOS
• Support Protocol: TCP/UDP
• Front Panel Features:
• Numeric key
• Directional key
• Menu button
• ESC button
• Enter button
• Power button
• Power LED
• Record LED
• IR

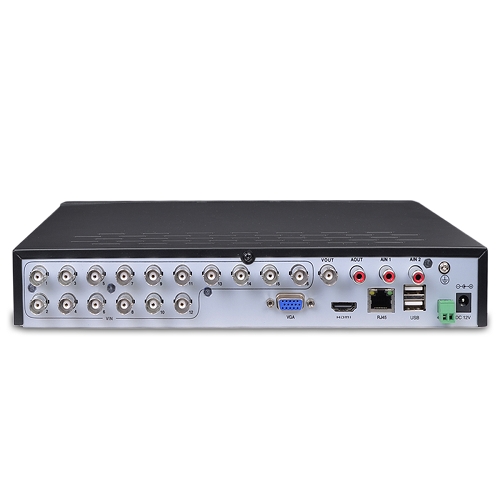

• Rear Panel Features:
• Sixteen (16) BNC Video inputs
• One (1) BNC Video output
• One (1) Audio output
• One (1) Audio input
• One (1) VGA
• One (1) HDMI
• One (1) 10/100 RJ-45 Ethernet
• Two (2) USB 2.0
• Serial RS485
• DC 12V power
• Power Adapter Specifications:
• Input: 100 – 240V, 1.0A, 50/60Hz
• Output: 12VDC, 4A
• Dimensions:
• 1.8 x 11.6 x 9.5-inches (H x W x D)

• Jovision JVS-D6016-S3 16-Channel DVR
• CloudSEE Software CD
• User Manual
• Power adapter
• Power cable
• USB Mouse
• Two (2) SATA cables
• Dual SATA to 4-pin power cable
• Remote control
• Screw pack

• Notes:
• Model: JVS-D6016-S3
• Product Requirements:
• SATA Hard Drive
• Compatible Cameras
• Available power outlet
• Two (2) AAA batteries for remote
