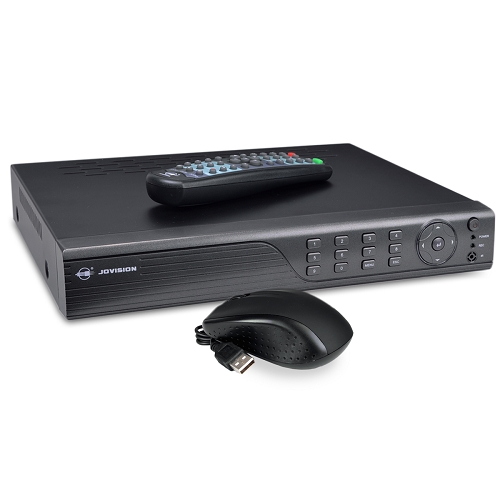

Jovision JVS-D7904-HV 4-Channel Digital Video Recorder

• Jovision JVS-D7904-HV 4-Channel Digital Video Recorder
• General Features:
• Tri-Hybrid: Analog+HD CVI+IPC – All in one DVR
• Just Add Hard Drive and Cameras
• Supports SATA hard drive up to 4 Terabyte capacity
• Best ability of compatibility: D1+1280H+1080P
• CloudSEE technology, One-key remote, Network plug & play for remote access
• H.264 Video compression technology
• Support ONVIF,compatible with other manufacturers IPC
• Support audio compression to achieve real-time video monitoring function
• Search and add IPC automatically with zero operation
• MP4 record file format
• Digital Zoom support
• USB Recovery support
• Voice Intercom support
• Night Vision Mode support
• Privacy Mask support
• Video Loss Alarm support
• Alarm Snapshot support
• SyncPlayback: 2CH 1280H/2CH 1080P
• Multi-Language support
• Operation device: Mouse/Remote Control/Front Panel
• Remote Control support
• Alarm In: 4 groups，32CH external alarm input box
• Alarm Output: 4 groups, 32CH external alarm output box
• Screen Layout: 1/2/4 Screens
• Alarm notification: Buzzer/Alarm device/PTZ call, Send alarm to client-end/E-mail alarm
• Video & Audio:
• Video Input: 4CH BNC
• Video Output: HDMI(1920*1080/1440*900/1280×1024/1024×768)
  • VGA（1920*1080/1440*900/1280×1024/1024×768）
  • CVBS（PAL：720×576/NTSC：720×480）
• Audio Input: 4CH RCA
• Audio Output: 1CH RCA
• Video Compression: H.264
• Encoding: DVR Mode:4CH 1280H
  • NVR Mode: 4CH 1080P
  • Hybrid Mode: 1280H×3+1080P×1/1280H×2+1080P×2/1280H×1+1080P×3
• Recording Resolution: 1080P/1280H
• Video BitRate  Analog: 768～8192Kbps;  Network: 409~8192Kbps
• Audio Compression: G.711a
• Storage:
• HDD Type: SATA
• HDD Number: 1pcs（up to 4TB/pcs）
• File Format  log：*.txt/picture：*.bmp/record：*.mp4
• Log Number: 2000
• USB (backup): Support U disk/Mobile HDD  FAT32 format
• Record:
• Record Type: Manual, Scheduled, Alarm, Motion Detection
• Record Mode: Cyclic Covering/Stop Recording
• Playback Control:  Play, Pause, Stop, Rewind, Fast play, Slow play, Digital zoom
• Search Mode:  All/Channel/Record Type/Date(Alone or Combined query)
• Network:
• Ethernet  10M/100M Adaptive
• Dual Stream support
• Max Remote viewing channel: 8CH
• Protocol: TCP/IP, DHCP, PPPoE, UDP
• Client-end: Cloudsee/WebCC/Android/IOS
• Smart Phone:
• Mobile OS  Android/IOS
• Support Protocol: TCP/UDP
• Front Panel Features:
• Numeric key
• Directional key
• Menu button
• ESC button
• Enter button
• Power button
• Power LED
• Record LED
• IR

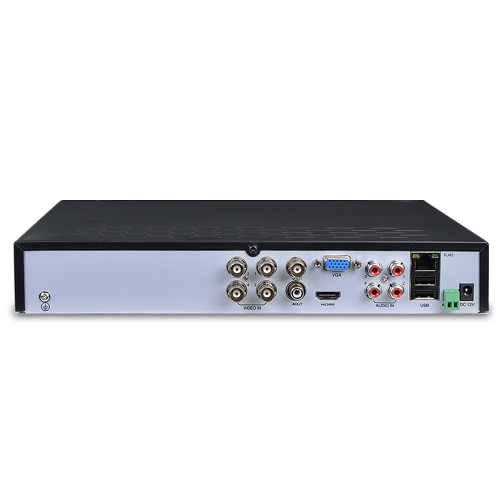

• Rear Panel Features:
• Four (4) BNC Video inputs
• One (1) BNC Video output
• One (1) Audio output
• Four (4) Audio input
• One (1) VGA
• One (1) HDMI
• One (1) 10/100 RJ-45 Ethernet
• Two (2) USB 2.0
• Serial RS485
• DC 12V power
• Power Adapter Specifications:
• Input: 100 – 240V, 50/60Hz, 0.6A
• Output: 12V, 2.0A
• Dimensions:
• 1.8 x 11.5 x 9.5-inches (H x W x D)

• Jovision JVS-D7904-HV 4-Channel Digital Video Recorder
• CloudSEE Software CD
• User Manual

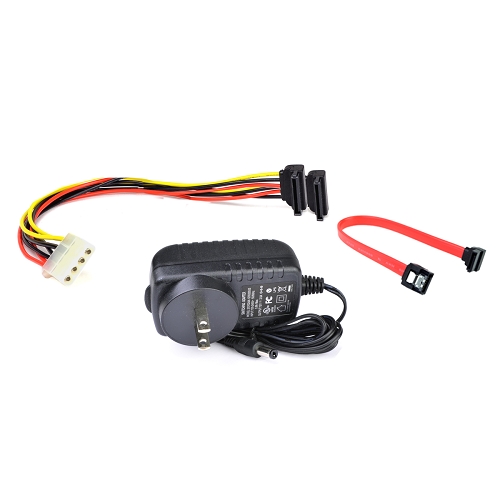

• Power adapter
• Remote control
• USB Mouse
• SATA cable
• SATA to 4-pin power cable
• Screw pack

• Notes:
• Model: JVS-D7904-HV
• Product Requirements:
• SATA Hard Drive
• Compatible Cameras
• Available power outlet
• Two (2) AAA batteries for remote
