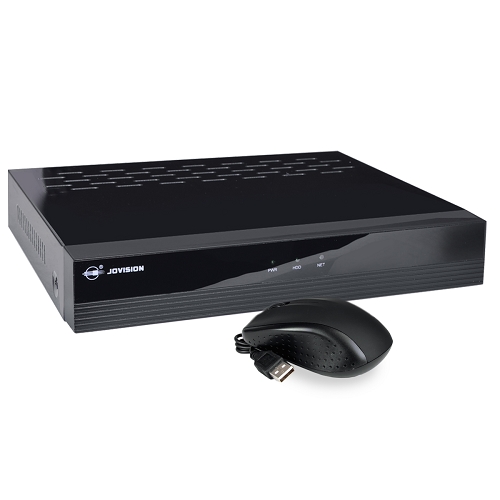

Jovision JVS-ND6004-H3 4-Channel 1080p Network Video Recorder

• Jovision JVS-ND6004-H3 4-Channel 1080p Network Video Recorder
• General Features:
• Color: Black
• 4CH 1080P access, 1CH 1080P/1CH 960P playback capability
• Just Add Hard Drive and Cameras
• Supports SATA hard drive up to 4 Terabyte capacity
• CloudSEE technology, One-key remote, Network plug & play for remote access
• H.264 Video compression technology
• Support ONVIF, compatible with other manufacturers IPC
• Support audio compression to achieve real-time video monitoring function
• Search and add IPC automatically with zero operation
• Network Assistant, one-key IP set function
• Support motion detection, 4 privacy areas mask
• MP4 record file format
• Audio Intercom support
• Multi-Languages support
• Input:
• Video Input: 4CH 1080P
• Output:
• HDMI: 1CH, Resolution：1920×1080/60Hz, 1440×900/60Hz, 1366×768/60Hz, 1280×1024/60Hz, 1280×800/60Hz, 1024×768/60Hz
• VGA: 1CH, Resolution：1920×1080/60Hz, 1440×900/60Hz, 1366×768/60Hz, 1280×1024/60Hz, 1280×800/60Hz, 1024×768/60Hz
• Audio Output: Support
• Encoding:
• Record: 1920×1080/1280×960/1280×720/768×432/704×576
• Video Encoding: 4CH 1080P/4CH 960P/4CH 720P
• SyncPlayback: 1CH 1080P/1CH 960P
• Record:
• Record/Snapshot: Manual Record/Snapshot, Scheduled, Motion Detection Record/Snapshot, Alarm Record/Snapshot, Playback Snapshot
• Playback Mode: Time List & Event Playback
• Backup Mode: Video Backup & Picture Backup
• Hard Drive:
• Type: 3.5″ SATA
• Capacity:  1* 4TB
• Network:
• Protocol: TCP/IP, DHCP, UDP, SMTP, NTP, Cloudsee
• LEDs
• Power
• HDD
• Net

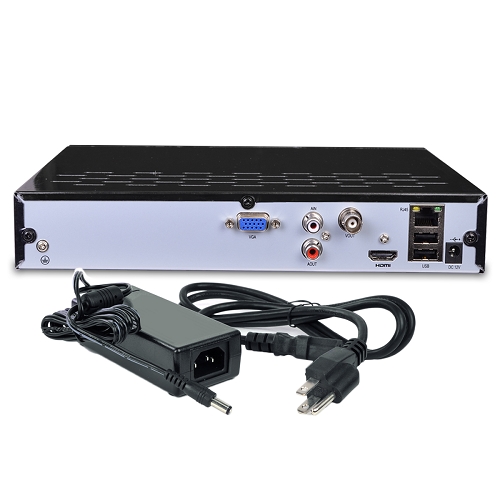

• Rear Panel Features:
• One (1) BNC Video out
• One (1) VGA
• One (1) HDMI
• One (1) Audio output
• One (1) Audio input
• One (1) 10/100 RJ-45 Ethernet
• Two (2) USB 2.0
• DC 12V power
• Power Adapter Specifications:
• Input: 180 – 240V, 1.0A, 47/63Hz
• Output: 12VDC, 3A
• Dimensions:
• 1.8 x 10.1 x 8-inches (H x W x D)

• Jovision JVS-ND6004-H3 4-Channel Network Video Recorder
• CloudSEE Software CD
• User Manual
• Power adapter
• Power cable
• USB Mouse
• Two (2) RJ-45 connector plugs
• Screw pack

• Notes:
• Model: JVS-ND6004-H3
• Product Requirements:
• SATA Hard Drive
• Compatible Cameras
• Available power outlet
