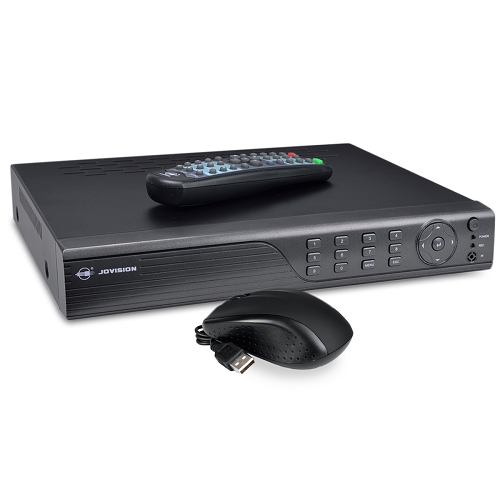

Jovision JVS-ND6016-H1 16-Channel Network Video Recorder

• Jovision JVS-ND6016-H1 16-Channel Network Video Recorder
• General Features:
• Color: Black
• 16-Channel Network Video Recorder
• 8CH 1080P/13CH 960P/16CH 720P access, 4CH 1080P/4CH 960P playback capability
• Just add hard drive and cameras
• Supports 2 SATA hard drives up to 4 Terabyte capacity
• CloudSEE technology, One-key remote, Network plug & play for remote access
• H.264 Video compression technology.
• Support ONVIF, compatible with other manufacturers IPC
• Support audio compression to achieve real-time video monitoring function
• Search and add IPC automatically with zero operation
• Network Assistant, one-key IP set function
• Support motion detection, 4 privacy areas mask
• MP4 record file format
• Multi-Languages support
• Audio Intercom support
• Alarm In: 4 Groups, 32CH, External Alarm Box Input
• Alarm Output: 4 Groups, 32CH, External Alarm Box Output
• Input:
• Video Input: 8CH 1080P/13CH 960P/16CH 720P
• Output:
• HDMI Resolution：1920×1080/60Hz, 1440×900/60Hz, 1366×768/60Hz, 1280×1024/60Hz, 1280×800/60Hz, 1024×768/60Hz
• VGA Resolution：1920×1080/60Hz, 1440×900/60Hz, 1366×768/60Hz, 1280×1024/60Hz, 1280×800/60Hz, 1024×768/60Hz
• Audio Output support
• Encoding:
• Record: 1920×1080/1280×960/1280×720/768×432/704×576
• Video Encoding: 8CH 1080P/13CH 960P/16CH 720P
• SyncPlayback: 4CH 1080P/4CH 960P
• Record:
• Record/Snapshot: Manual Record/Snapshot, Scheduled,Motion Detection Record/Snapshot, Alarm Record/Snapshot, Playback Snapshot
• Playback Mode: Time List & Event Playback
• Backup Mode: Video Backup & Picture Backup
• Hard Drive:
• Type: 2 pcs SATA Interface
• Capacity: up to 4TB/pcs
• Network:
• Protocol: TCP/IP, DHCP, UDP, SMTP, NTP, Cloudsee
• Front Panel Features:
• Numeric key
• Directional key
• Menu button
• ESC button
• Enter button
• Power button
• Power LED
• Record LED
• IR

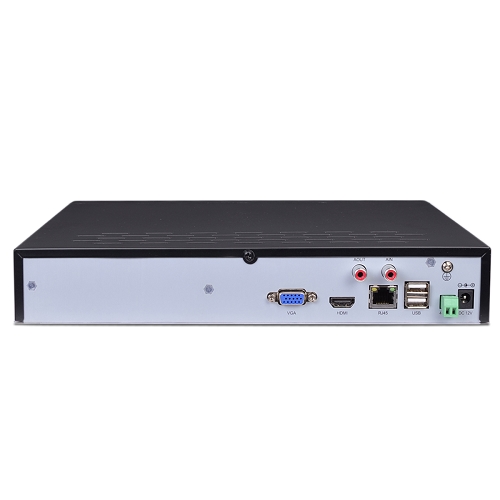

• Rear Panel Features:
• One (1) VGA
• One (1) HDMI
• One (1) Audio output
• One (1) Audio input
• One (1) 10/100 RJ-45 Ethernet
• Two (2) USB 2.0
• Serial RS485
• DC 12V power
• Power Adapter Specifications:
• Input: 180 – 240V, 1.0A, 50/60Hz
• Output: 12VDC, 4A
• Dimensions:
• 1.8 x 11.6 x 9.5-inches (H x W x D)

• Jovision JVS-ND6016-H1 16-Channel Network Video Recorder
• CloudSEE Software CD
• User Manual
• Power adapter
• Power cable
• USB Mouse
• Remote control
• Two (2) SATA cables
• Dual SATA to 4-pin power cable
• Screw pack

• Notes:
• Model: JVS-ND6016-H1
• Product Requirements:
• SATA Hard Drive
• Compatible Cameras
• Available power outlet
• Two (2) AAA batteries for remote
