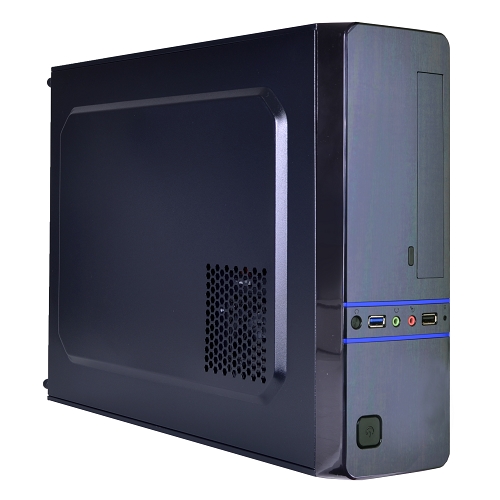

Logisys CS6802BK 3-Bay Slim mATX/Mini ITX Case

• Logisys CS6802BK 3-Bay Slim mATX/Mini ITX Case

• General Features:
• Black color
• SGCC Steel Micro ATX / Mini ITX slim case
• 350-watt 20+4pin Power Supply installed
• Built-in SD and TransFlash (TF) card reader
• Power button
• Reset button
• One (1) SuperSpeed USB 3.0 port
• One (1) USB 2.0 port
• One (1) 3.5 mm Microphone jack
• One (1) 3.5 mm Headphone jack

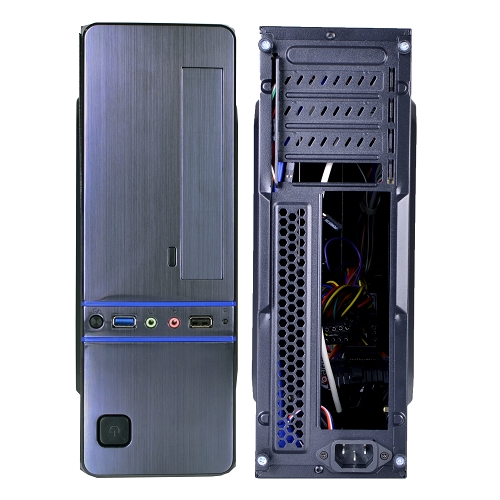

• Drive Bay Features:
• One (1) Slim 5.25-inch external drive bay
• One (1) Slim 3.5-inch external drive bay
• One (1) 2.5-inch internal drive bay
• or two Slim 3.5” Internal Bay + one 2.5” Internal Bay

• Expansion Features:
• Four (4) Expansion slots

• Supported Form Factors:
• mATX
• Mini ITX

• Case Fan Support:
• Two (2) 80 mm case fans on side

• Power Supply Features:
• Output Power: 350 Watt
• AC input: 220V – 50Hz, 3A,
• 115V – 220V Switchable

• Power Supply Output:
• +3.3V/20A
• +12V/12A
• -12V/0.8A
• +5V/30A
• +5VSB/2.0A

• Available Power Supply Connectors:
• One (1) 14-inch 20+4-pin ATX power connector
• One (1) 14-inch 4-pin ATX 12V power connector
• Four (4) large 4-pin Molex power connectors
• One (1) Floppy connector
• One (1) SATA connector

• Unit Dimensions:
• 11.75 x 4 x 15.75-inches (H x W x D, approximate)

• Logisys CS6802BK 3-Bay Slim mATX/Mini ITX Case
• 350-watt 20+4-pin power supply
• Power cord

• Notes:
• Model: 6802
• P/N: CS6802BK

• Product Requirements:
• mATX or Mini ITX motherboard
• The rest of the system
• Available power outlet
