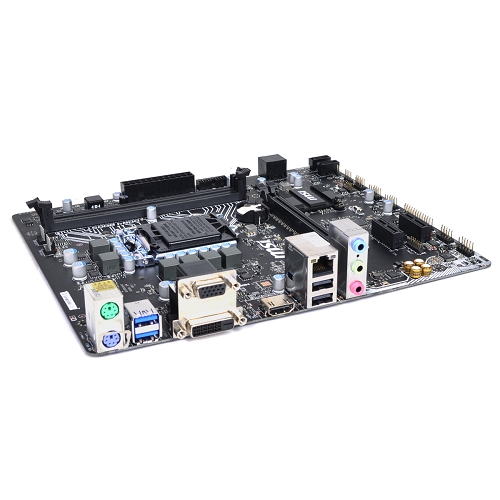

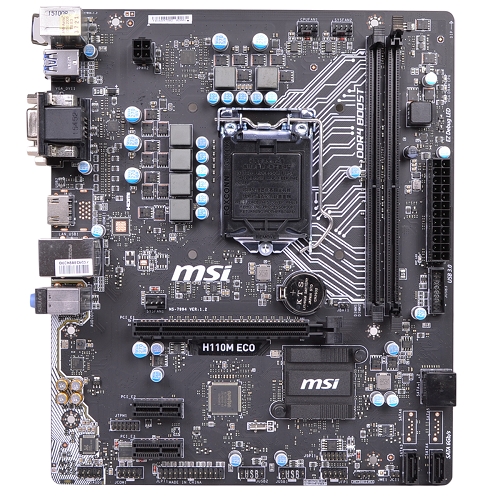

MSI H110M ECO Intel H110 Socket 1151 mATX Motherboard

• MSI H110M ECO Intel H110 Socket 1151 mATX Motherboard

• General Features:
• mATX form factor
• Intel H110 Chipset
• Two (2) DDR4 memory slots, support up to 32GB, Supports DDR4 2133 MHz
• Dual channel memory architecture
• Integrated Graphics
• Realtek ALC887 Codec 7.1-Channel High Definition Audio
• Intel I219V Gigabit LAN controller
• ECO Genie: Saving energy with a single push without complicated settings
• ECO Center Pro and Eco Meter: Being full control of and monitor your systems’ power usage
  100% Performance and Compatibility
• VGA Armor: Reinforced Armor slots
• Click BIOS: Secure and Reliable UEFI BIOS solution
• Audio Boost: Reward your ears with studio grade sound quality
• Military Class 4: Top Quality & Stability
• Guard-Pro: Improved Protection and Power Efficiency
• EZ Debug LED: Easiest way to troubleshoot
• Overvoltage Protection: Prevent Unforeseen Damage
• 4K UHD Support: Ultra-high Definition Visual Experience
• COM/LPT support (pin header): Perfect for Industrial and Commercial use
• Intel SBB Support: Improves Productivity, Management and Security
• WHQL Certified, Windows 10 ready

• Expansion Slots:
• One (1) PCIe 3.0 x16 slot
• Two (2) PCIe 3.0 x1 slots
• Two (2) 288-pin DDR4 DIMM sockets

• Rear I/O Ports:
• Two (2) PS/2
• Two (2) USB 3.1 Gen1
• Two (2) USB 2.0
• One (1) DVI-D
• One (1) HDMI
• One (1) VGA
• One (1) LAN (RJ45)
• Three (3) 3.5mm Audio jacks

• Internal I/O Connectors:
• One (1) 24-pin ATX main power connector
• One (1) 4-pin ATX 12V power connector
• Four (4) SATA 6Gb/s connectors
• Two (2) USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• One (1) USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• One (1) 4-pin CPU fan connector
• Two (2) 4-pin system fan connectors
• One (1) Front panel audio connector
• Two (2) Front panel connectors
• One (1) TPM module connector
• One (1) Serial port connector
• One (1) Parallel port connector
• One (1) Chassis Intrusion connector
• One (1) Clear CMOS jumper

• Supported Processors:
• 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors

• MSI H110M ECO Intel H110 Socket 1151 mATX Motherboard
• Drivers and Utilities on DVD-ROM
• Quick Installation Guide
• User Guide

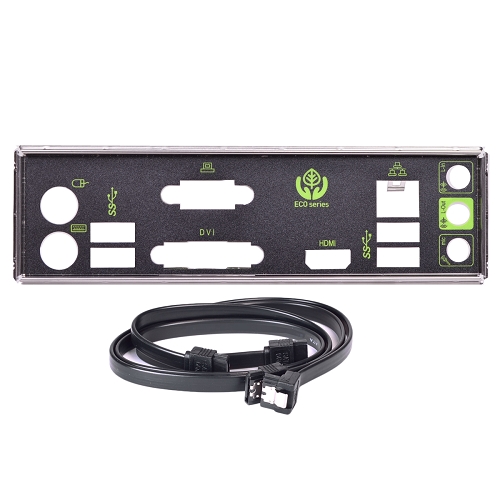

• Two (2) SATA cables
• I/O Shield

• Notes:
• Model: H110M ECO
• P/N: 914-7994-008
• UPC: 8 24142 12534 2
• EAN: 4 719072  442187

• Product Requirements:
• mATX/ATX case
• Power supply
• Supported Intel CPU
• Supported DDR4 RAM
• The rest of the system
