Q-See QC858-8BD-2 8-Channel Network NVR Surveillance Kit

• Q-See QC858-8BD-2 8-Channel Network NVR Surveillance Kit
• Q-See QC858 NVR Features:
• Color: White
• Advanced H.264 video compression
• Supports one (1) SATA HDD up to 4 TB (2TB included)
• Backup via PC, flash drive, USB hard drive
• 48V—2A (NVR & POE)
• Motion detection, time schedule, and manual
• Eight (8) POE Input(s), one (1) VGA Output, one (1) HDMI Output
• Recording options: 720p: 1280×720 @ 30FPS, 1080p: 1920×1080 @30FPS, 3MP: 2048×1536 @20FPS, 5MP: 2560×1920 @8 FPS

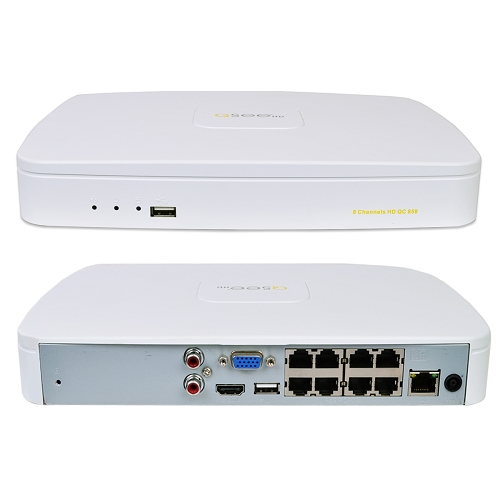

• DVR Rear Connections:
• Eight (8) Power Over Ethernet (PoE) Inputs
• One (1) 15-pin VGA port
• One (1) HDMI port
• One (1) LAN port
• One (1) Audio in
• One (1) Audio out
• Two (2) USB 2.0 ports
• DC 12V power port
• Q-See QCN8033B Camera Features:
• Color: White
• Durable metal housing
• 3-Megapixel resolution (2304 x 1296)
• Night vision: up to 100-feet
• 65° to 70° Wide field of view
• IP66 Dust and waterproof rating
• -22° to 140°F operating tempurature
• Power over Ethernet
• Only works with QCN solutions or as a standalone unit
• DVR Power Adapter Specifications:
• Input: 100-240V ~ 50/60Hz, 0.6A
• Output: 12V—2000mA
• Camera Power Adapter Specifications:
• Input: 100-240V ~ 50/60Hz, 0.7A
• Output: 12V—2000mA
• Unit Dimensions:
• DVR: 1.5 x 10.6 x 8.1-inches (H x W x D)
• Camera: 2.6 x 2.6 x 3.6-inches (H x W x D)

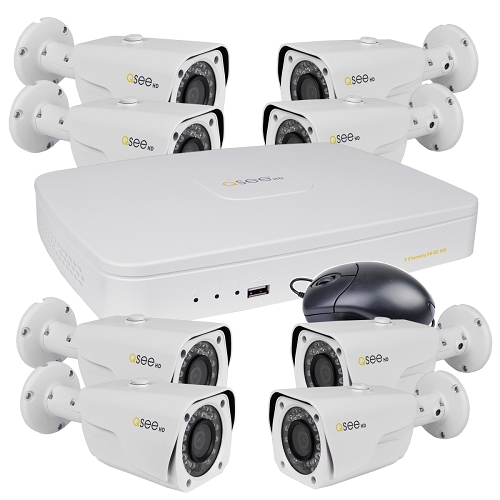

• Q-See QC858-8BD-2 8-Channel Network NVR Surveillance Kit
• Eight (8) Q-See QCN8033B Cameras
• 2TB Western Digital Purple hard drive
• Eight (8) 60-feet BNC cables
• Two (2) Camera power adapters
• Two (2) 4-Way power splitters
• DVR power adapter
• HDMI cable
• USB mouse
• Ethernet cable

• Notes:
• Model: QC858-8BD-2
• UPC: 6 45439 25607 1
• Product Requirements:
• Available power outlets
• Monitor with BNC connectors
• Available Ethernet port
• HDMI and VGA connectors
