The Samsung SDH-B3040 is a 4-channel Analog High Definition (AHD) Security System includes 4 IP-66 rated weather-resistant cameras delivering 720p resolution at the fraction of the price of an IP video system. It offers true daylight and clear night vision up to 82 feet. The system is simple to install and easy to use as the traditional analog CCTV systems.

FEATURES!

720p High Definition
Smooth playback with true aspect ratio, 720p HD real-time recording gives you clear imaging without any distortion. The high quality resolution delivers more details and sharper videos allowing better forensic inspection of a person’s face or license plate. The 720p AHD Security System provides greater sense of protection without breaking the bank!

Easy Setup
No need to forklift your existing installation. The 720p AHD Security System is based on analog technology, so the installation is “plug & play” eliminating the need for any rewiring or moving cables around, just like the traditional CCTV systems. You can use your existing RG59 BNC cable and simply, upgrade to the AHD DVR and new cameras.

Backwards Compatible
No need to throw away your standard BNC cameras. Simply, connect them to your new AHD DVR with the existing RG59 BNC cable. Your system will be able to support your older analog cameras in the same resolution as before, as well as your new AHD cameras in 720p.

Real-Time Monitoring
Just like traditional analog CCTV, the 720p AHD Security System provides real-time monitoring with no lag!

Longer Transmission
The 720p AHD Security System transmits video up to 1,600 feet over RG59 cabling – this is 3 times the distance of a standard IP system.

Free Mobile App
Samsung iPolis app provides free remote monitoring anytime, from anywhere, when connected on your mobile device.

Discrete and Compact Design
The cameras have been designed to fit nicely in your environment with the through-the-mount cable design for tamper protection and clean installation.

Weather-Resistant
Each camera is rated IP-66 weather-resistant to withstand extreme conditions.

Smart Detection
With smart detection, you can select the areas you want to monitor and receive email alerts when motion is detected.

Enhanced Wide-Angle Viewing
Enhanced 100° viewing angle provides a wider field of view to maximize coverage compared to the traditional 70° to 75° viewing angle cameras.

True Day and Night
The HD camera provides night vision capability up to 82 feet in total darkness. With True Day and NIght mode, the camera provides best night vision images in its class.

DON’T FORGET THE OPTIONS!

DVR with Wi-Fi
Don’t be limited in where to place your DVR. The Wi-Fi option gives you the flexibility to place the DVR anywhere in your home or small business, without having to run a network cable to the router*!
*Samsung Wi-Fi Adapter needed for wireless connection; Wi-Fi Adapter not included.

DVR with Backup
In addition to the new 1TB built-in DVR storage, you can also instantly back up your recordings to a USB flash drive or external hard drive* without having to go into the backup menu.
*USB flash drive and external hard drive not included

• Samsung SDH-B3040 4-Ch 1TB 720p HD DVR Video Security System
• General Features:
• 4-channel Analog High Definition (AHD) Security System
• Four (4) 720p high definition weatherproof cameras
• 720p HD real-time monitoring & recording
• IP66 weather resistant
• Built-in 1TB SATA hard drive
• Night vision up to 82-feet
• Audio: Compression G.711, Sampling Rate 8KHz
• Alarm Remote: Notification Notification via e-mail
• DVR Specifications:
• Resolution: 1280 x 720 ( HD) / 960×480 (wD1)
• Live Frame Rate: 120fps @ 1280 x 720 / 120fps @ 960 x 480
• Resolution: 1280 x 720 ( HD) / 960×480 (WD1)
• Multi Screen Display: 1/4/Sequence/ PIP
• Performance:
• Operating System: Embedded Linux
  • Compression: H.264
• Recording: Record Rate: MAX 120fps @ 720p
  • Mode: Manual, Schedule (Continuous / Event), Event(Pre / Post), Time Lapse(1~30fps)
  • Overwrite Modes: Continuous
  • Pre-Event: Off / 5sec
  • Post-Event: Up to 6 hour (Off, 5, 10, 20, 30 sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4 ,5, 6 hour)
• Search & Playback: Search Mode: Date/time, Event, Back up, Motion (*All search included preview function)
  • Playback Function: Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
  • Slow forward / backward (1/2x, 1/4x, 1/8x)
  • Step forward / backward *Backward play with I-frame only
  • Network (IPv4): Transmission Speed 4CIF 120fps / 2CIF 240fps / CIF 480fps
  • Bandwidth: Up to 32Mbps
  • Bandwidth Control: Selectable
• Network (IPv4): Stream H.264(4CIF/2CIF/CIF Selectable)
  • Remote users Maximum: Search 3 / Live unicast 10 / Live multicast 20
  • Protocol Support: TCP/IP, UDP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, TSP, UPnP
  • Monitoring: Smart viewer,Webviewer, Mobile Viewer
• Smart Phone: Smart Phone Android OS v.2.3.5, v4.0.3, v4.1.2, 4.2, v4.3 iOS OS v5.1.1, v6.0, v6.0.2, v6.1, v7.0
  • Protocol Support: RTP, RTSP, HTTP, CGI
  • Transmission Speed: CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)
  • Max. Remote Users: Live (2)
• Storage: USB (Back up) 2 USB ports
  • File Format: (Back up) BU (DVR player), EXE (Include player), AVI
  • External (e-SATA Interface) 1 e-SATA I/F
• Security: Password Protection 1 Admin, 10 Group, 10 User per 1group
  • Data Authentication Watermark

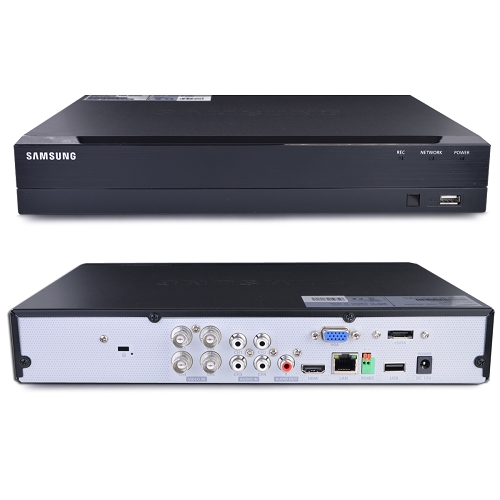

• Interface:
• Four (4) BNC video connectors
• One (1) eSATA port
• One (1) VGA (1280×720, 1280×1024, 1920×1080) 60Hz
• One (1) HDMI (1280×720, 1280×1024, 1920×1080) 60Hz
• One (4) RJ-45 10/100Mbps Base-T Ethernet LAN port
• Four (4) Audio inputs
• One (1) Audio output
• Two (2) USB 2.0 ports (one front, one back)
• Protocol Support (RS-485) Samsung-E/ Samsung-T/ Pelco-D/ Pelco-p/Panasonic/ Phillips/ AD / ICON/GE
• Power Specifications:
• DC 12V
• DVR Dimensions:
• 1.89 x 11.81 x 8.22-inches (H x W x D , approximate)
• Camera Features:
• Four (4)  IP-66 weather-resistant cameras
• 28 LED lights
• Night vision up to 82-feet
• 12V DC input voltage
• 3W power consumption
• Video:
• Imaging Device: 1/3″ CMOS
• Camera Output: 1CH BNC / Maximum Transmission Length: Over 300m (75Ω 3C2V)
• Active Pixels: 1280(H) x 960(V)
• Scanning System: Progressive, 30fps(NTSC)/25fps(PAL)
• Synchronization: Internal
• Min. Illumination: OLux (IR-LED ON)
• Accessory Cable Length: 60ft (18.3m) included
• Lens:
• Focal Length: 3.6mm
• Max. Aperture Ratio: F1.8
• Angular Field of View: H:78°, V: 62.5°, D:100°
• Operational:
• Shutter Mode: Auto
• Gain Control: Auto
• White Balance: Auto (1,800°K ~ 10,500°K)
• Digital Noise Reduction: 3D DNR
• Day & Night: ICR (Auto)
• IR Distance: (850nm) 25M (LED 28EA) 850nm
• Flickerless: Auto
• Camera Dimensions:
• 2.4 x 2.4 x 5.47-inches (H x W x D, approximate)
• Weight: 0.43 lbs / 194g

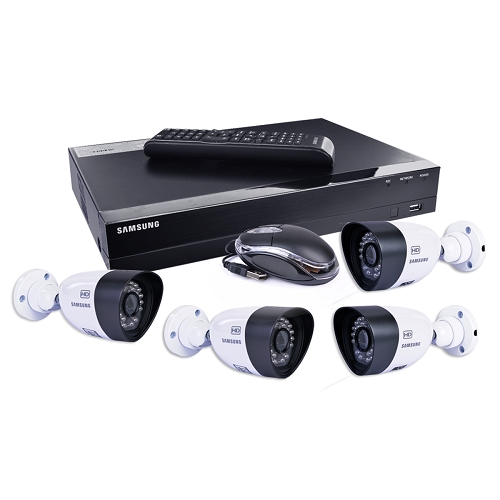

• Samsung SDH-B3040 4-Ch 720p HD DVR Video Security System
• 1 Terabyte hard drive pre-installed
• Four (4) Night-Vision & Weatherproof 720 Line Resolution Cameras

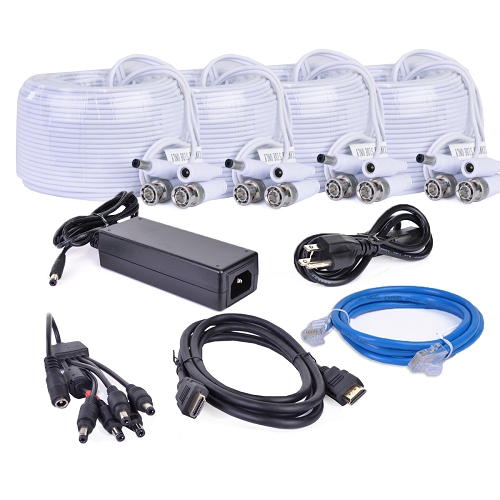

• Four (4) 60-foot BNC camera cables with male to female power supply connectors
• DVR/Camera power adapter cable
• Power Adapter  (Input: 100 – 240V, 50/60Hz, 1.5A, Output: DC 12V, 3A)
• Power cord
• Ethernet cable
• HDMI cable
• USB mouse
• Remote control w/2 AAA batteries

• Notes:
• Model: SDH-B3040
• Product Requirements:
• Available power outlet
• Monitor with BNC Connectors
• Available Ethernet port
• HDMI, eSATA and VGA connectors
