Business demands confidence. Here’s yours.
Designed to perform, impress, and protect—this sleek HP EliteDesk helps you power through to business success!

Fast-track your performance
Multitask and move your business forward with reliable Intel processors. Power through your day with speed and performance. Get solid processing technology with 4th generation Intel® Core™ processors.

HP EliteOne 800 G1 All-in-One Business PC – Built to Last
HP EliteOne PCs are rigorously tested to help ensure reliability. During the HP Total Test Process, HP PCs experience 115,000 hours of performance trials to help get you through your business day.

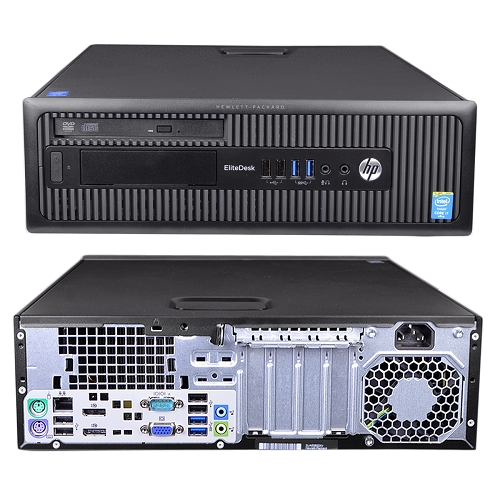

• HP EliteDesk 800 G1 Core i7-4770 Quad-Core 3.4GHz Small Form Factor PC

• General Features:
• Small form factor
• Genuine Microsoft Windows 10 Pro pre-installed w/Microsoft Authorized Refurbished (MAR) CoA
• 4th Gen Intel Core i7-4770 3.4GHz quad-core processor
• 3.9GHz Max Turbo Frequency, 8MB Smart Cache, 5GT/s DMI2
• Intel 8 Series (Q87) chipset
• 8 GB DDR3 RAM (supports up to 32GB)
• 500 GB SATA hard drive
• Slim SuperMulti DVD±RW SATA drive
• Integrated Intel HD Graphics
• Realtek ALC221 Audio, DTS Sound
• Integrated Intel I217LM Gigabit Ethernet

• Motherboard Features:
• One (1) PCI Express x16 slot (v3.0)
• One (1) PCI Express x16 slot (v2.0, wired as x4)
• One (1) PCI Express x1 slot (v2.0)
• Four (4) 240-pin DDR3 DIMM sockets (two occupied)
• Three (3) SATA ports (two occupied)

• Front I/O Ports:
• Two (2) USB 2.0
• Two (2) SuperSpeed USB 3.0
• One (1) 3.5mm Microphone/Headphone combo
• One (1) 3.5mm Headphone

• Rear I/O Ports:
• Two (2) PS/2
• One (1) 15-pin VGA
• Two (2) DisplayPort
• One (1) Serial
• Two (2) SuperSpeed USB 3.0
• Four (4) USB 2.0
• One (1) RJ-45 Ethernet
• One (1) 3.5mm Line-in audio
• One (1) 3.5mm Line-out audio

• Case Features:
• One (1) Slim 5.25-inch external drive bay (occupied)
• One (1) 3.5-inch external drive bay
• Two (2) 3.5-inch internal drive bays (one occupied)
• 240-watt power supply (100 – 240V, 50/60Hz)

• Unit Dimensions:
• 4 x 13.25 x 14.9-inches (H x W x D, approximate)

• Regulatory Approvals:
• FCC
• CE
• VCCI
• BSMI
• C-Tick
• WEEE
• cULus Listed
• Safety Mark

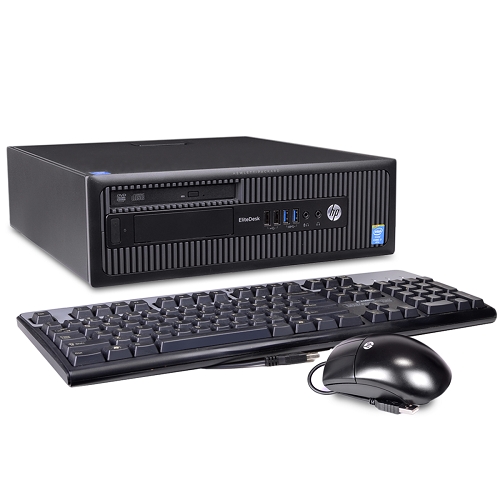

• HP EliteDesk 800 G1 Core i7-4770 Quad-Core 3.4GHz Small Form Factor PC
• Microsoft Windows 10 Pro pre-installed w/Microsoft Authorized Refurbished (MAR) CoA
• HP USB Keyboard
• HP USB Mouse
• Power cord

• Notes:
• Model: EliteDesk 800 G1
• Small form factor: PCI Express expansion cards will require low-profile brackets

• Product Requirements:
• DisplayPort or VGA
• Available power outlet
